Hybrid Pop Up Camper Trailers | Off Road Camper

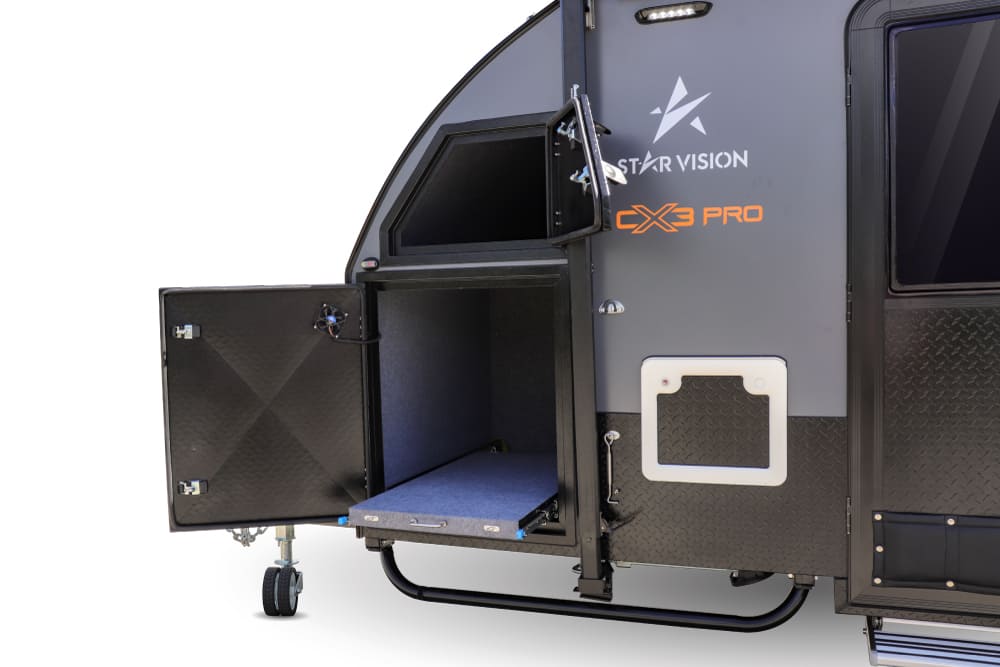

It has finally arrived a step closer to your doorstep, the ultimate off road heavy duty hybrid camper. It’s perfect for a family of 4, with a built in shower/toilet & 2 x sink, also a built in heater & air conditioner. Huge tool box where you can actually fit 2 x 80L fridges on both sides. MASSIVE storage section inside the camper with a fold out queen size bed and a bunk bed. Rotatable table for meals and family games to play, a Truma hot/cold water system, built in luxury kitchen with sensor LED lights, 3x Thetford cooktop burner, 3.5 tone McHitch hitch, 200 Watts solar panel, 3x battery, 2000 watt inverter, TV wall mount, touch screen stereo display Bluetooth connectivity.

Comes with rugged off road tyres with 2 spares, all independent suspension and with our own personal touch we include a blue LED light handle.

This is a hybrid camper you cannot miss you be turning heads left, right and centre so come and start living the dream!

SV Independent Suspension

SV independent suspension has been designed exclusively to make your Star Vision camper trailer more efficient to reduce the impact when driving off-road in Australia. It provides you with comfortable, safe, and stable driving, which ensures your camping trip goes as smooth as possible.

Hot / Cold Air Conditioner

This awesome feature makes it possible to go camping comfortably when it is a hot summer or a cold winter. With the hot/cold air conditioner, your camping trip will feel like at home.

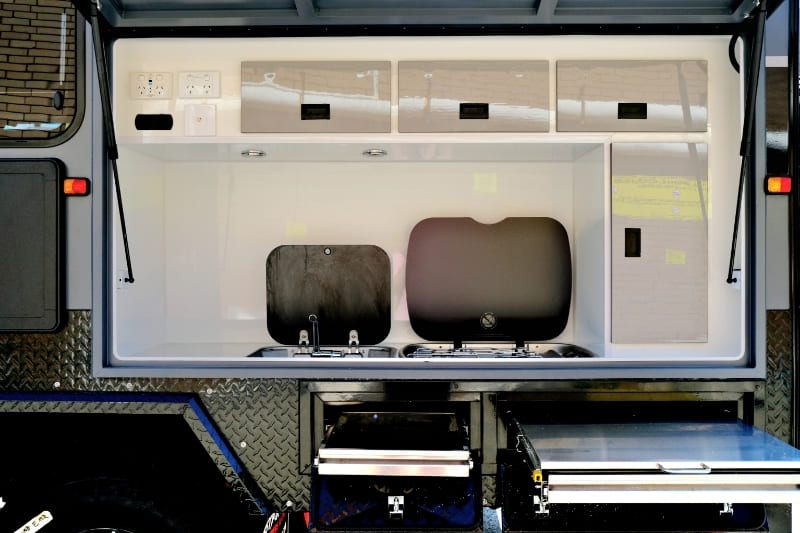

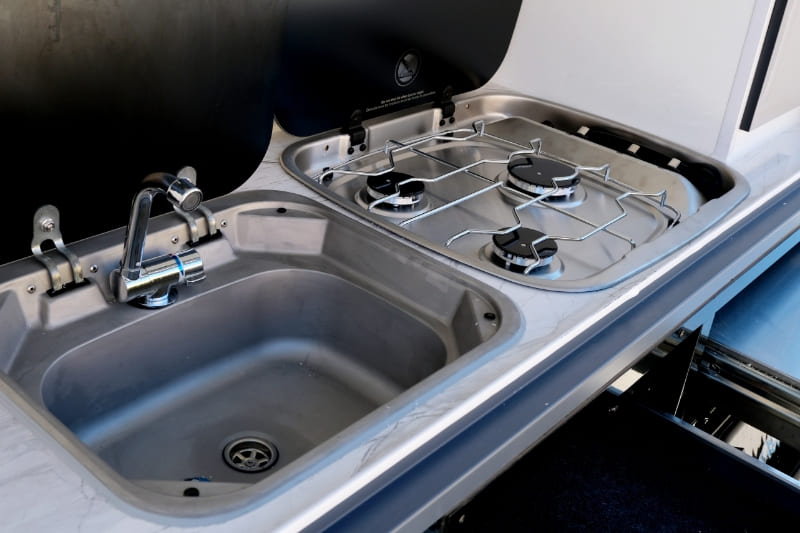

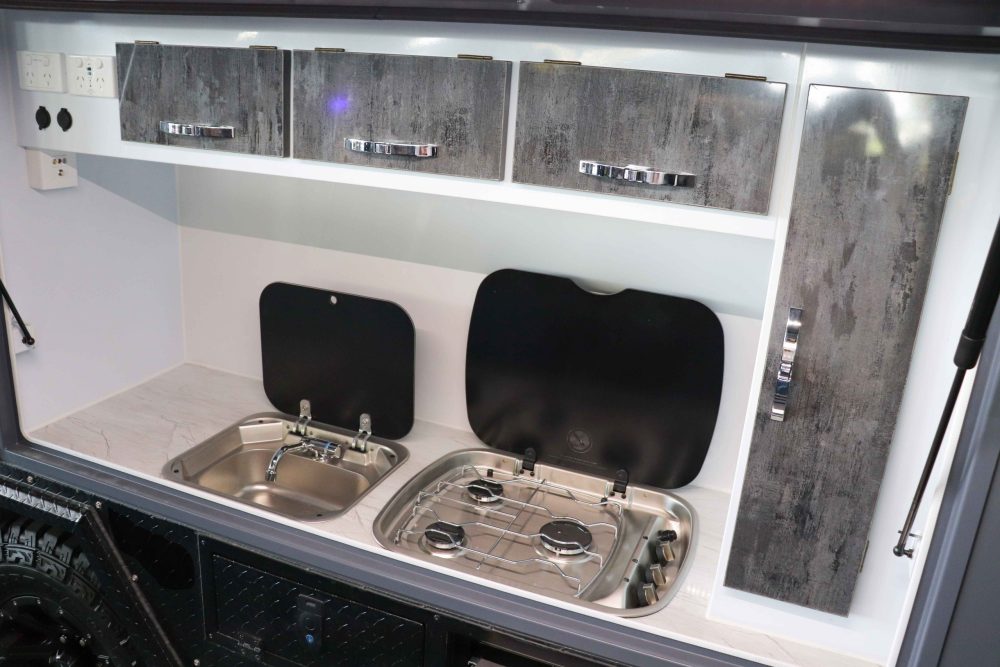

Luxury Outdoor Kitchen

The outdoor kitchen is spacious and organized. Provided with a Theford 3 LPG Gas burner cooktop, it can serve your whole family well. Gas cooking is also great for you cooking professionally.

Premium Tent

It only takes minutes to set up. The electric roof makes your life easy and simple. 16oz heavy-duty (100% Waterproof) double-stitched canvas make your camping adapt to various environments. Besides, it has a 200W roof-mounted flexible solar panel, which is environmental-friendly and economical.

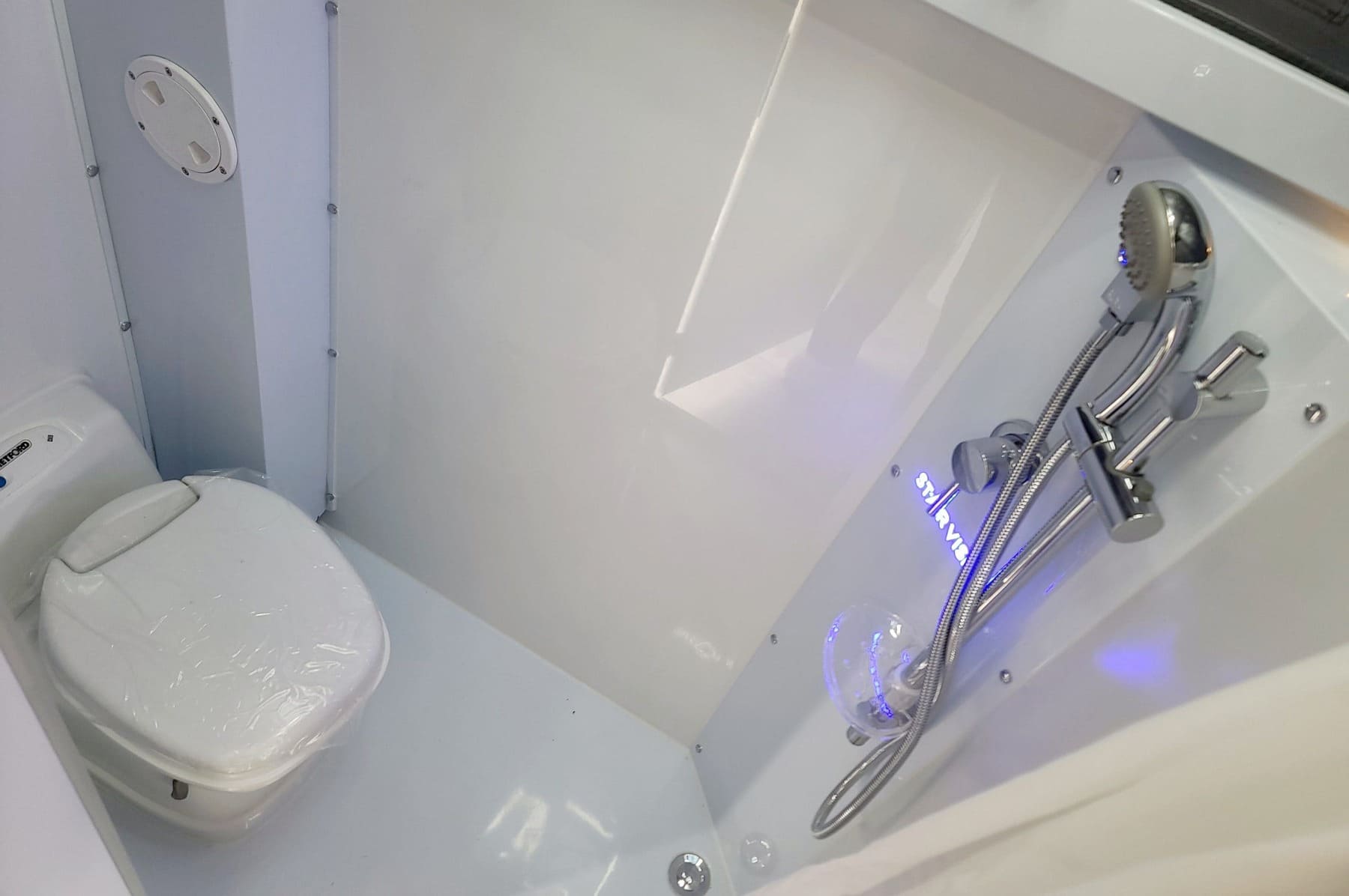

Toilet / Shower

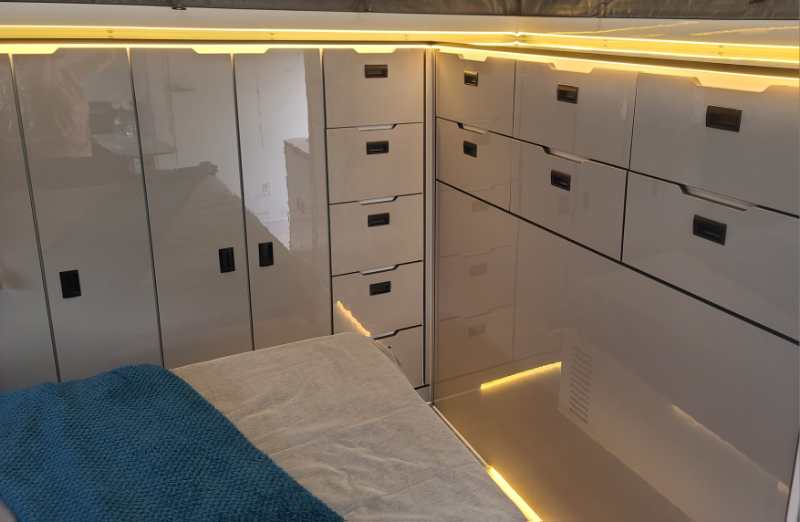

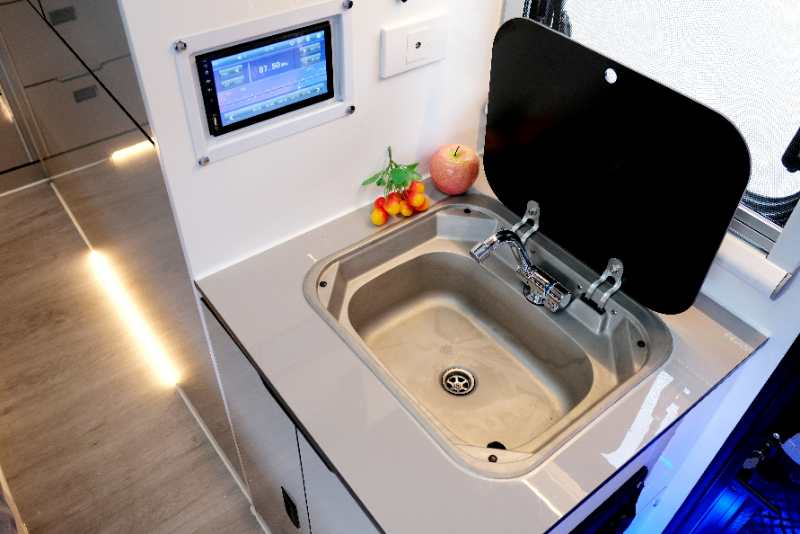

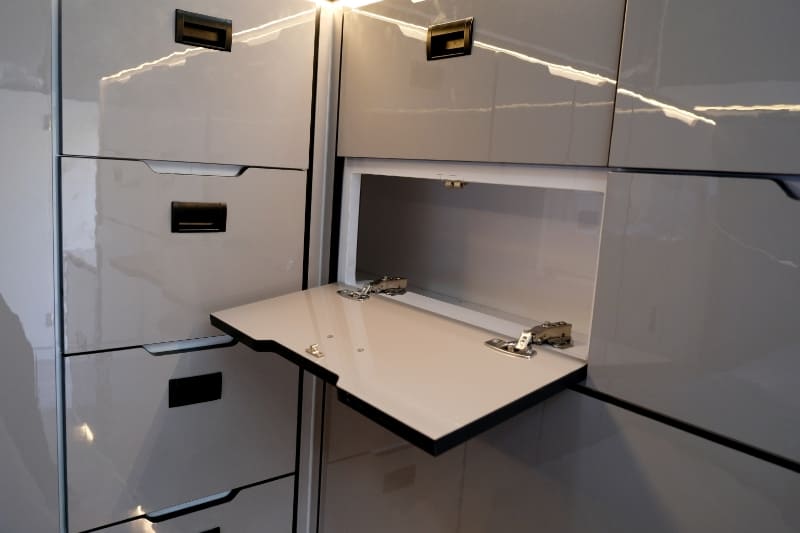

Storage / Sink / TV Mount

Seating / Table / Extra Bed

Interior

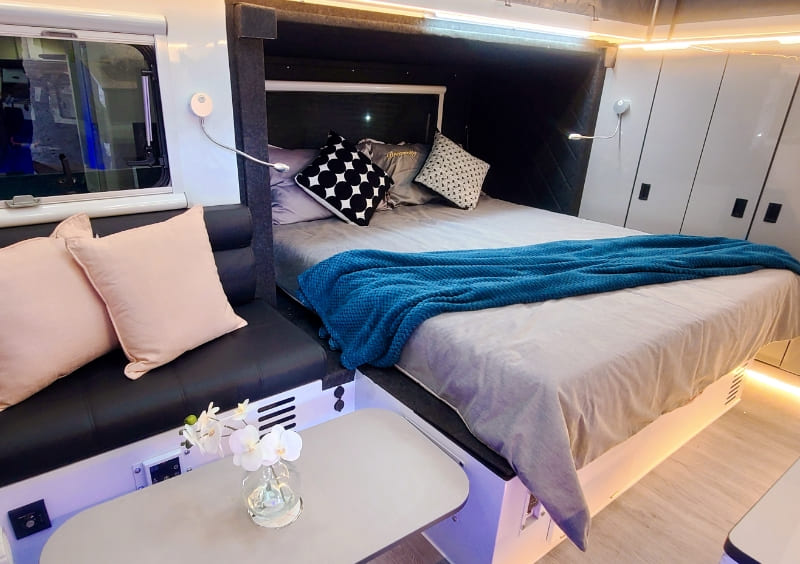

Bedding

Kitchen Area

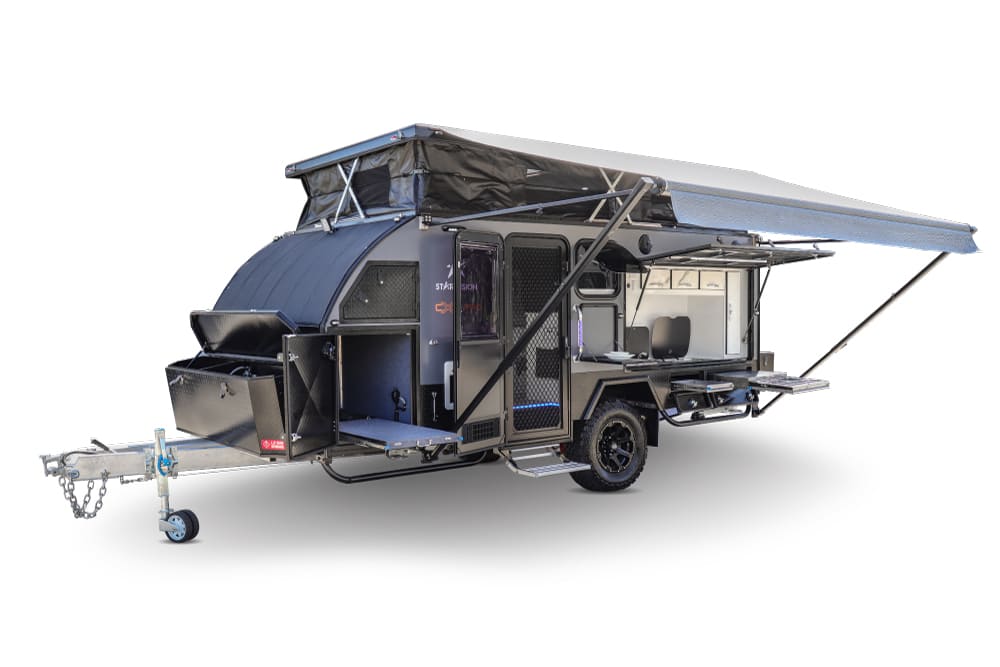

Setup 2

Setup 1

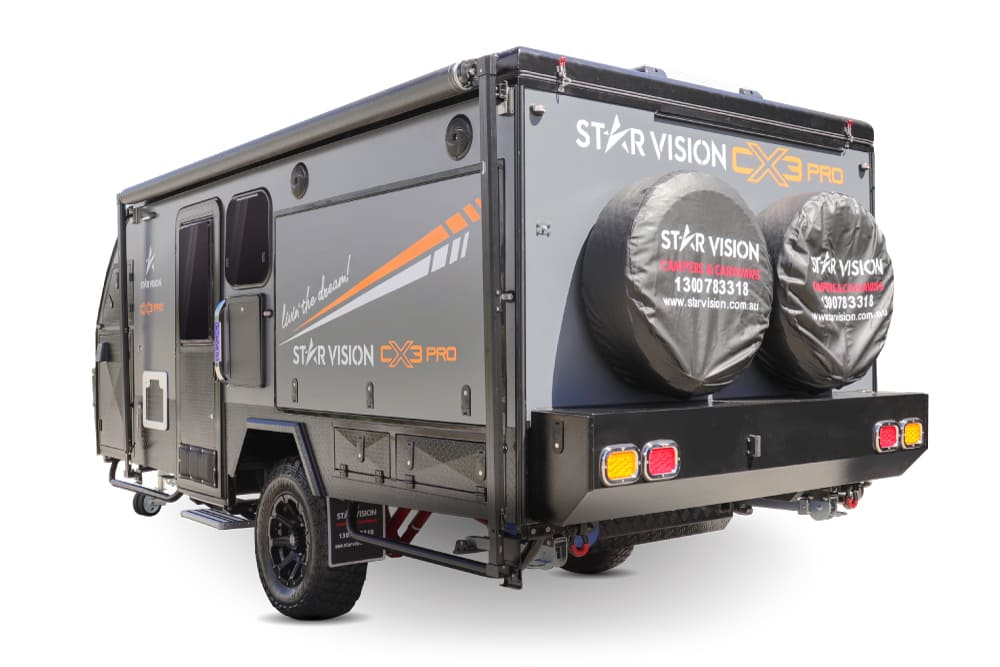

Rear

Front

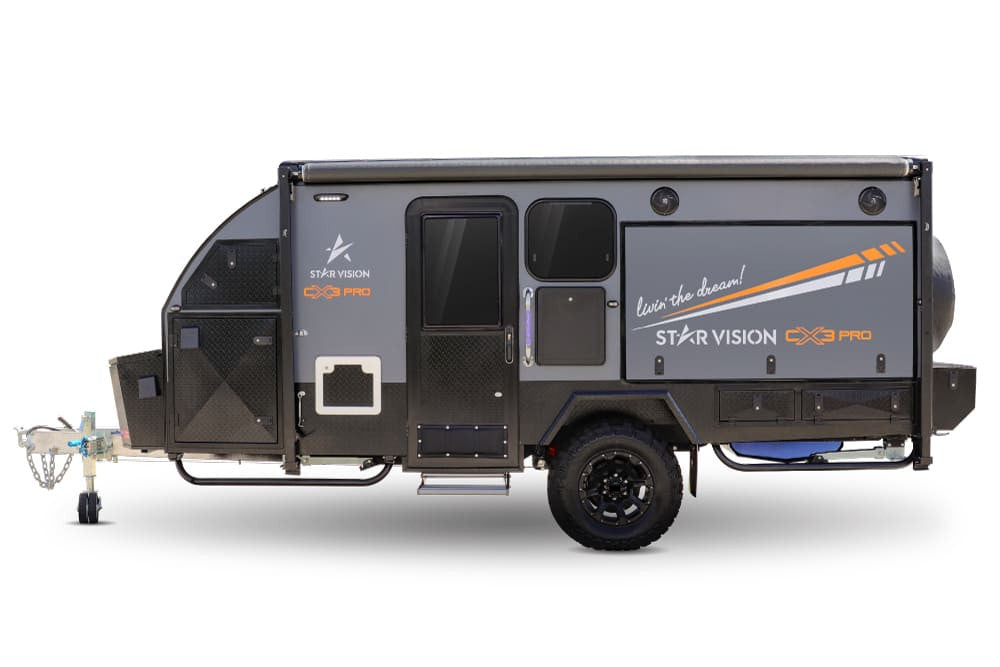

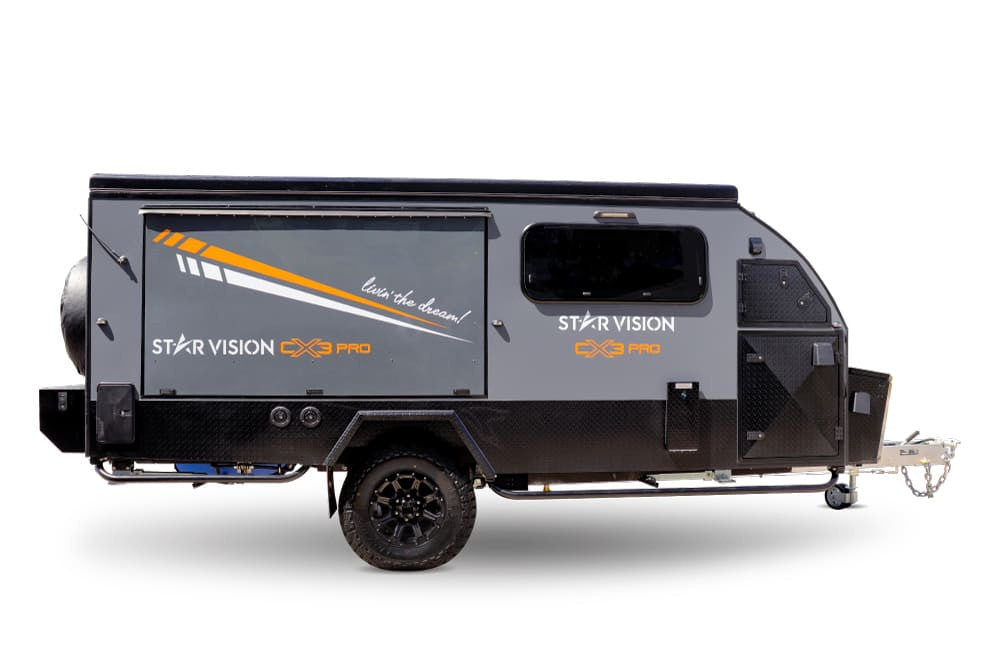

Side

Details

Specifications

Blueprint

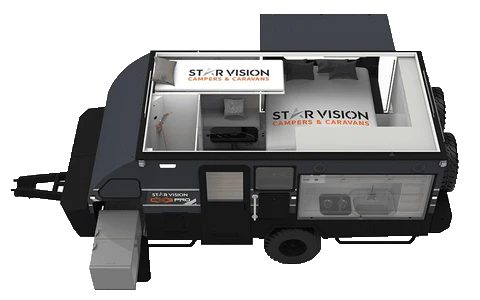

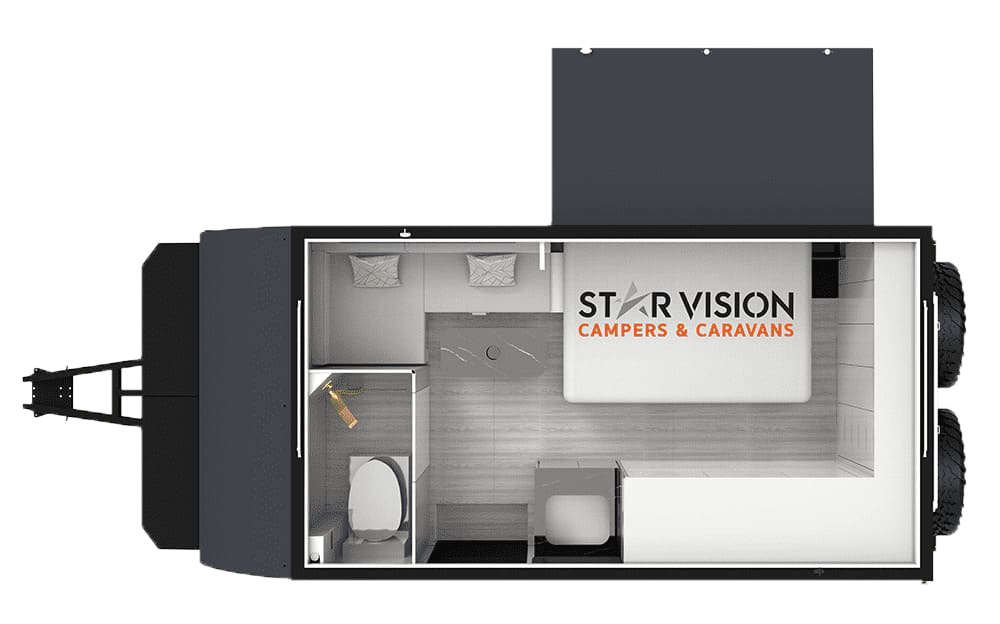

Layout

• Ball weight: 180 KG
• Tare weight: 2100 KG
• Loading capacity: 2700 KG
• 240 Volt power inlet + 240 Volt charger
• 240 Volt power outlet
• 2000W Power inverter
• Electric roof
• 3x 12v AGM 100Ah deep cycle batteries
• ARK XO 750 Series heavy duty dual jockey wheel
• 2x Jerry can holders
• 2x 9 KG Gas bottle holders
• 4x Stabilisers legs
• Hard laminate flooring
• McHitch coupling (3.5 tonne)
• LED Lights (internal & external)
• Table (height adjustable & rotatable)
• Cushioned dining area
• Cutlery draw
• Massive amount of storage space

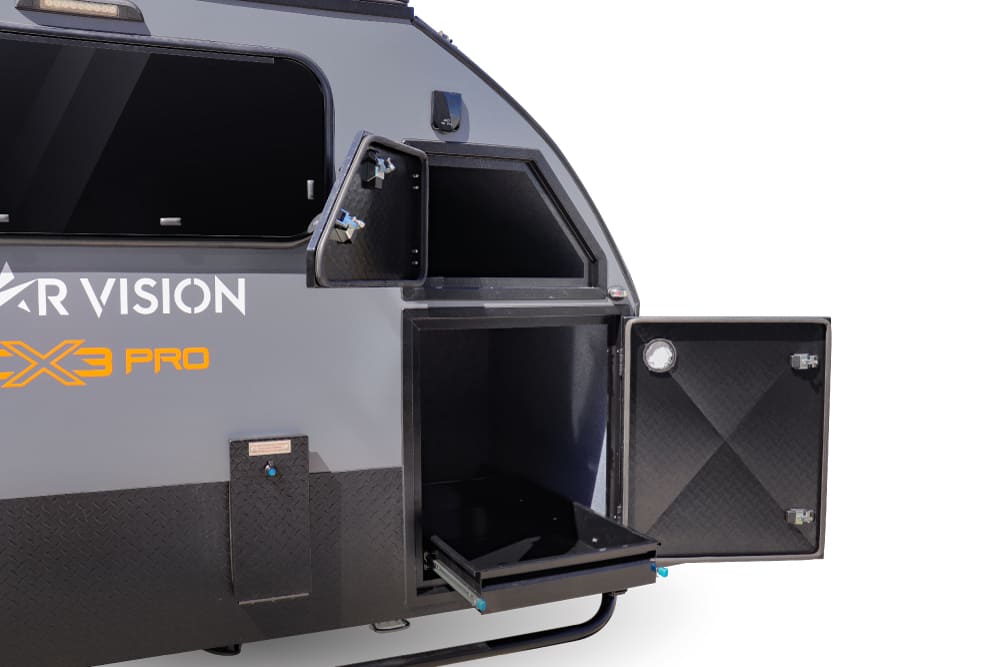

• Fridge slide (990 L x 540 W x 640 H mm)
• TV Mount (TV optional)
• 200w Flexible solar panel mounted on roof
• Recovery Points: 2 x Heavy duty rear shackles
• Roof: Automatic actuators on each end with a manual overide tool kit
• 12 Volt System with Multiple Sockets

• Internal Ensuite: Thetford Shower & Toilet and an external shower
• Outdoor Kitchen: 3 x Thetford Burner. Hot and Cold water sink, 2 x Touch Sensor LED down lights (2 Modes, Dim / Bright)
• Houghton Belaire HB9000 split system Reverse cycle air-conditioner
• Truma Hot water system
• 1600mm wide inner spring mattress
• Fully enclosed annex
• 16oz Heavy duty double stitched canvas
• Hot-Dip Galvanised chassis & body deadener
• Steel rims
• Mud terrain tyres (265/75R16)
• 150 Litre water tank / 130 Litre grey tank
• Stainless steel kitchen sink with electric water pump
• Kitchen light
• 2x Speakers
• Stereo/Radio/Media Player: 4inch touch screen, USB, SD card reader, AM/FM/CD/MP3/BLUETOOTH
• USB outlet plug
• Anderson plug
• 7 Pin flat trailer plug
• Coil spring, independent trailing arm suspension
• 4x Heavy duty off road dual shock absorbers
• Control Panel with VOLT & AMP Digital Meter

Trailer	Description
Trailer Size:	6450 L x 2220 W x 2365 H mm
Draw-bar:	Total Draw-bar size: 3600 mm (3800 mm include coupling)
Chassis:	Extra Heavy Duty off-road frame
Ball Weight:	180 KG
TARE Weight:	2100 KG
ATM:	2700 KG
Fridge Box Size:	990 L x 540 W x 640 H mm
Suspension:	Coil spring, twin shock absorbers, independent trailing arm
Wheels and Tyres:	2 x Steel Rim Wheels, 2 X Brand New Spare 16” 6-stud Land-cruiser pattern tyres and rims (265/75R16)
Brakes:	4WD 12 inch Electric Brakes plus additional Hand Brake
Coupling:	McHitch Off-road Heavy-Duty coupling with double safety chains
Finish:	Hot-Dip Galvanised steel frame
Jockey Wheel:	ARK XO 750 Series heavy duty dual jockey wheel
Jerry Can Holder:	2 x Jerry can holders
Water tank:	150 Litre tank
Grey Tank:	130 Litre tank
Gas Bottle holder:	2 x Gas bottle holders (9 KG bottles)
Bedding area:	LED Lights with Switch
Lights:	Built-in LED Lights (internal & external)
Solar Panel:	200W Roof mounted flexible solar panel
Stabiliser legs:	4 x quick lock-up and wind down drop-down stabiliser bars

Awning	Description
Awning Colour:	Dark Grey
Awning Section:	3500 x 2000 mm
Height (lowest):	2380 mm
Height (highest):	3000 mm
Mattress:	1850 L x 1600 W x 200 H mm (inner spring)
Windows:	7x Midge mesh Mosquito Proof Netting windows and 3x Pushout
Mounting System:	Electric roof / struts / scissor arms
Other inclusions:	Pegs, poles, awning walls, awning roof
Other features:	• Easy electric roof enables easy setup • Awning has removable sides • Awning Walls are roped tracked in to roof for Easy fit and removal • High Strength Frame

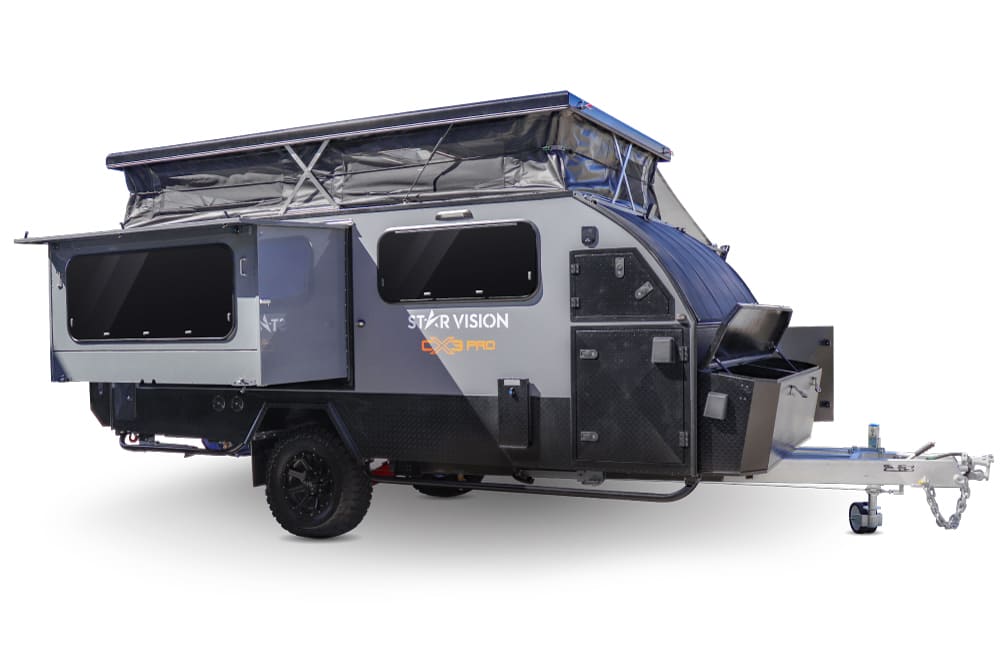

The Star Vision CX3 is an extreme off-road camping trailer that’s ready for your next off-road adventure. It will have you ditching your holiday home and take the roads less taken with your entire family on tow. Whether you are dreaming of the coast, the country or the Outback, this heavy duty hybrid camper trailer can go wherever you want to.

The CX3 is designed with the serious off-road traveller in mind. The heavy duty independent suspension makes sure you are safe no matter which part of Australia you’re out exploring. This off road camper will offer strength, durability and luxury to ensure you have a confident, comfortable trip.

When you are looking for the best heavy duty campers in Australia, look no further. Get the CX3 and start Livin’ the Dream!

Download Brochure | Call 1300 783 318

Off Road Caravans for Your Adventures Across Australia

The CX3 is an agile, heavy duty camper trailer that packs in a heavy punch. Perfect for your family of 4, this is an explosive off road camping trailer that comes roaring with a 2000W inverter, 3.5 tonne McHitch hitch, 200W solar panel, 3 x batteries, a TV wall mount and a touch screen Bluetooth entertainment system.

It features all the essentials you need for your camping trips in the remotest places. And the top-quality composite panels boast extreme durability and strength during the worst conditions so you are safe and secure even when the elements play spoilsport.

Gorgeous Interiors that Boast All Creature Comforts and More

The CX3’s interior features quality furnishings and cutting-edge appliances including an in-built reverse cycle AC and a slimline heating unit. Not to forget the built-in toilet and shower with two sinks.

The kitchen is finished off with stylish benchtops and looks modern, trendy and gorgeous. What’s more, this off road camper trailer will never be short on storage space. The CX3 makes the most of all available space with excellent external and internal storage.

The generous queen size bed and the bunk bed will have you sleeping like a baby and well rested so you’re ready for your adventure the next day, fresh and energised.

It boasts a massive tool box that can fit 2 x 80L fridges on both the sides. It comes with a built-in kitchen featuring sensor LED lights and a 3-burner Thetford cooktop. The rotatable table is perfect for mealtimes and family games.

Off Road Camper Trailer Unlike Any Other

The CX3 offers unmatched luxury, features and comfort at an unbeatably affordable price. Get your hands on this rugged vehicle and get set for beautiful adventures and memories.

For the full list of features, download the brochure here. Got a question or two? Call 1300 783 318 now.
