Features:
- 15 foot hybrid camper
- Lightweight, easy to tow
- Low travel height
- Electric roof & slide out
- 2 x 135Ah LiFePRO+™ 12V Lithium Iron Phosphate battery
- 400W Roof Mounted Solar Panel
- Cruisemaster DO35 (3.5 tonne)
- 2000W Power Inverter
- Luxury Indoor Kitchen
- 200L Fresh Water Tank
- Under bench Reverse Cycle Air Conditioner (hot&cold)
- Double Spare Wheel
Dimensions & Weight
From: $64,990 $57,990
+ Dealer Delivery & On Road Costs
or $215 a week Financed
+ Dealer Delivery & On Road Costs
or $215 a week Financed
Benefits & Features
PROJECTA BATTERY MANAGEMENT SYSTEM
All inbuilt Projecta Charger & Projecta MPPT Solar Controller with an LCD Display. With the ability to monitor your battery & solar input and output. It is also all easily accessible through Bluetooth.
INTERNAL KITCHEN WITH FRIDGE & MICROWAVE
Provided with a 3-burner cooktop, it can serve your whole family well. Built in 90L fridge and a microwave oven will ensure its your kitchen that rules!
SEPARATE SHOWER & TOILET
This amenity comes in handy during your camping trips. It comes with plenty of storage space.
ELECTRIC SLIDE OUT BEDROOM
The slide out bedroom allows for a quick and easy set up and pack down. Along with the electric roof and rollout awning.

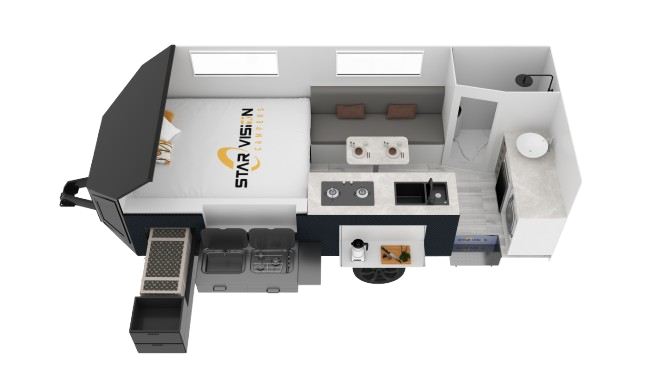

Layout

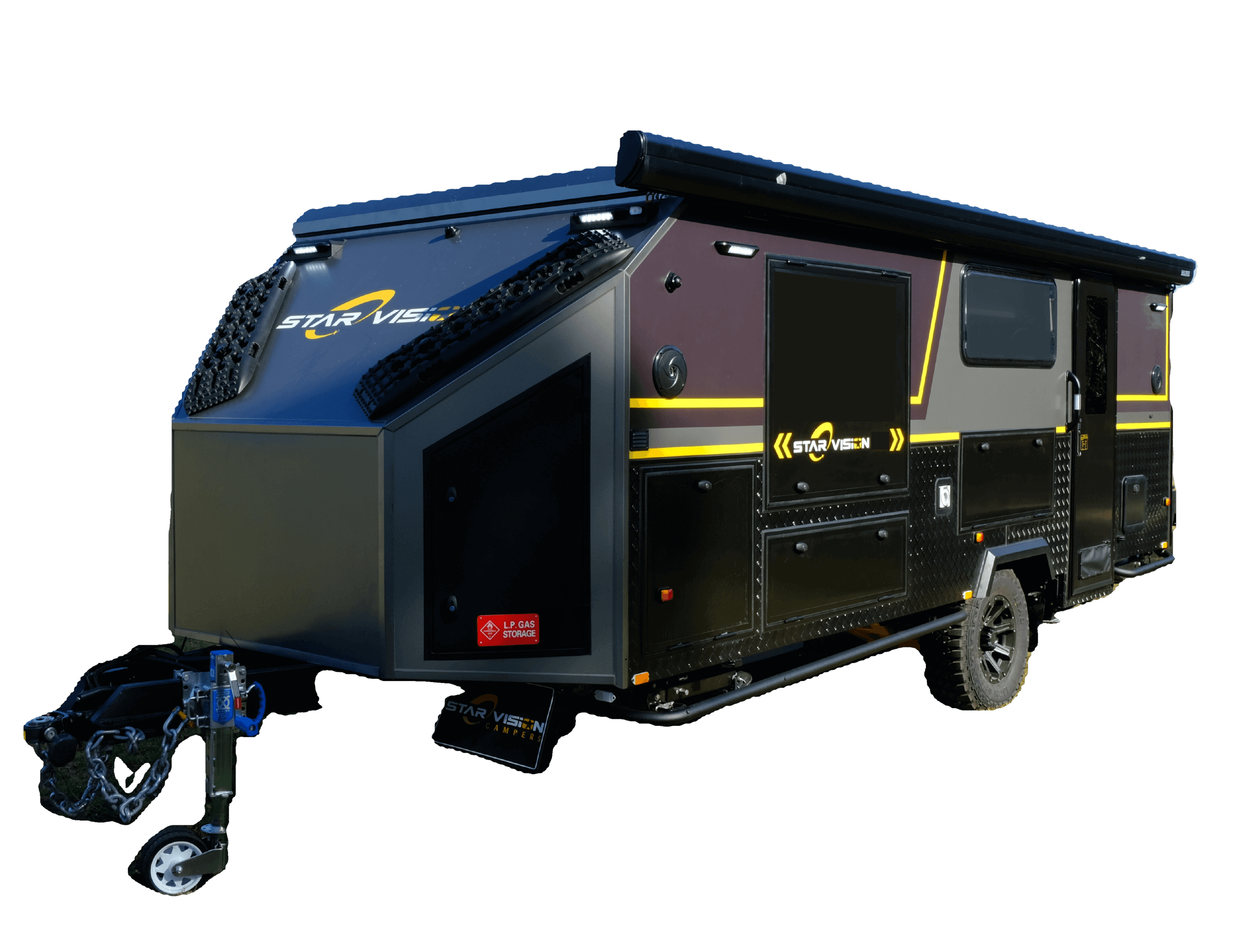

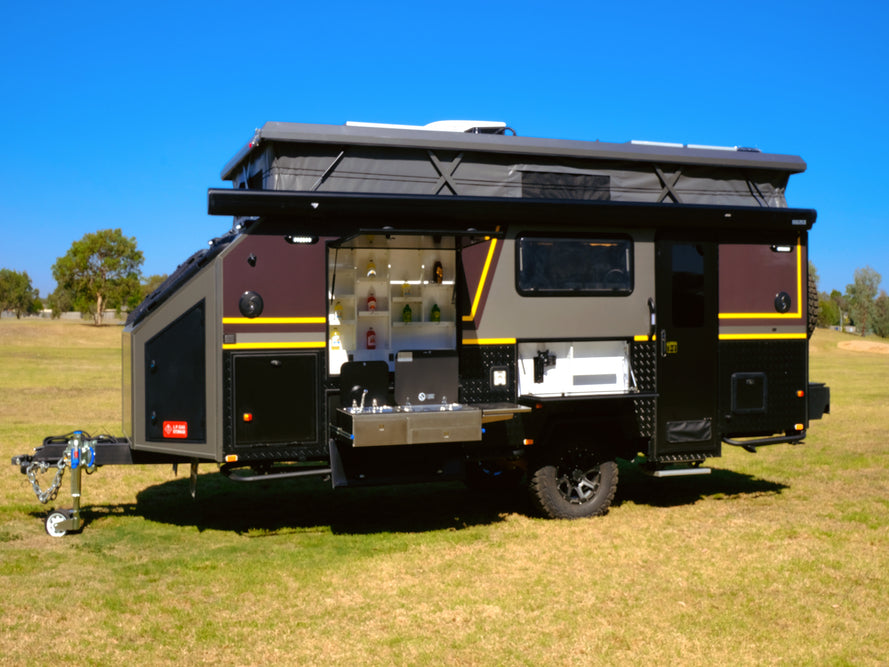

EXTERIOR

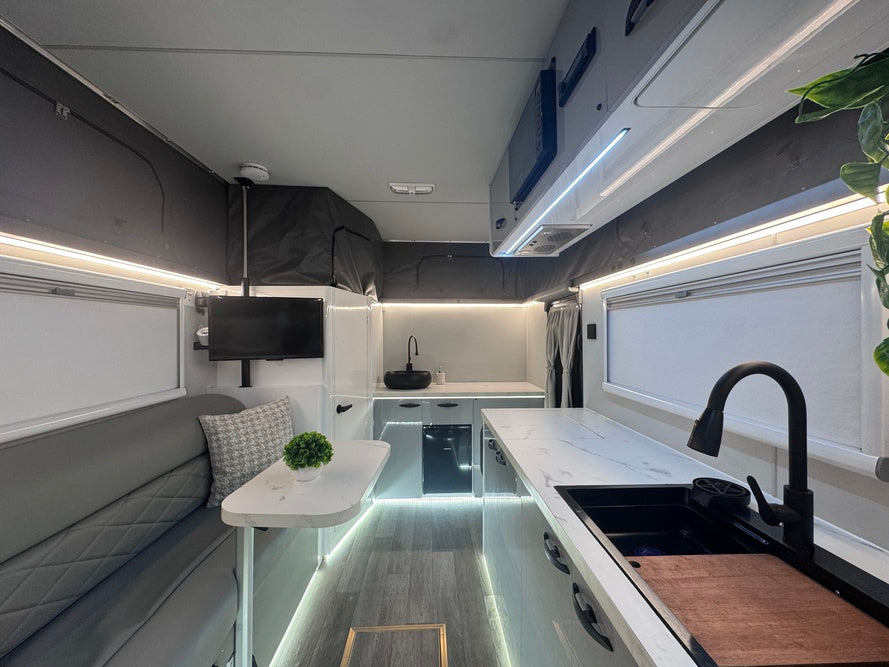

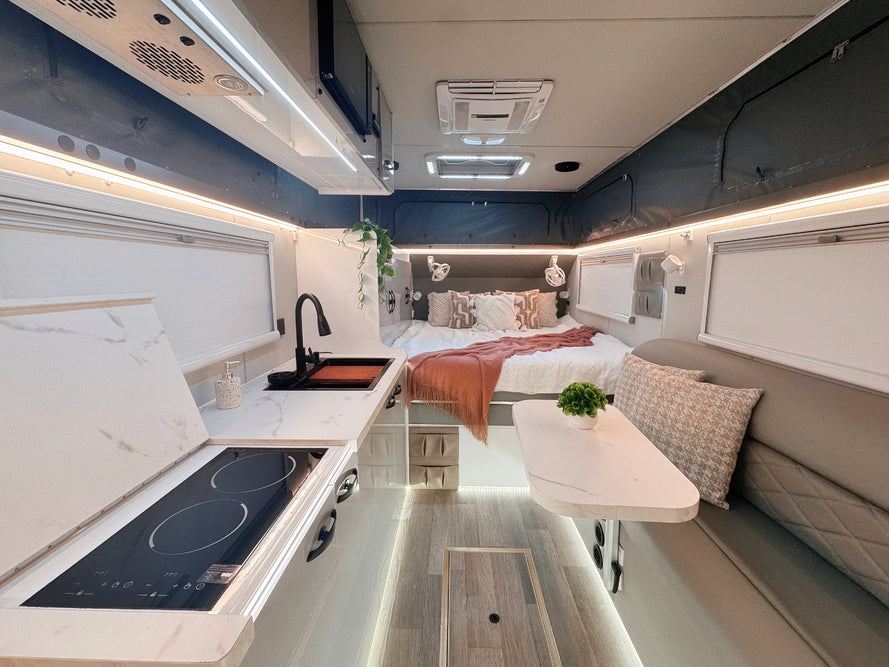

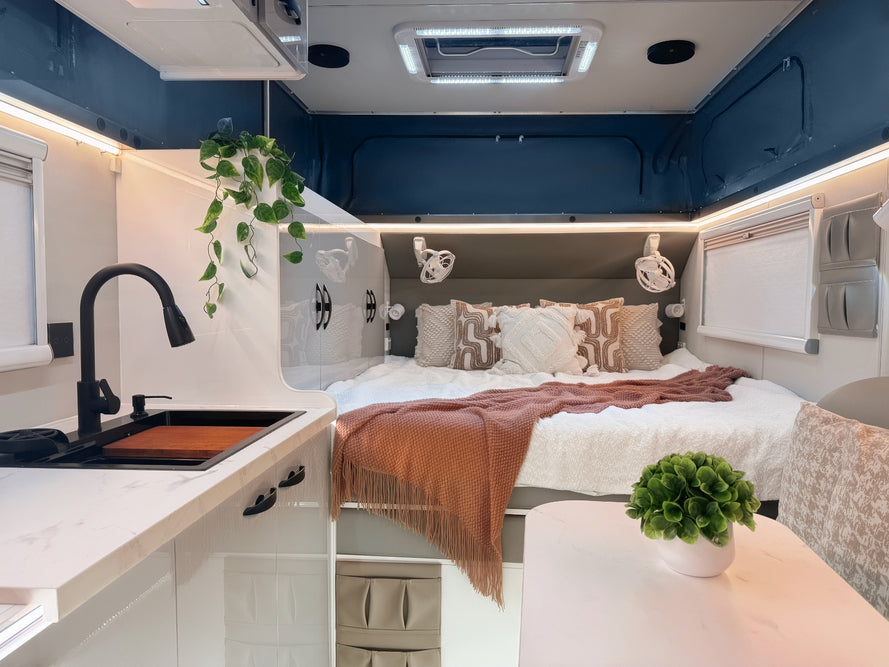

INTERIOR
Additional Details
DETAILS
WEIGHTS & RATINGS
GENERAL DIMENSIONS
CHASSIS
EXTERIOR
INTERIOR
|
MAJOR APPLIANCES
ELECTRICAL
INTERNAL POWER OUTLETS
EXTERNAL POWER OUTLETS
OTHER FEATURES
|
SPECIFICATION
|
Trailer
|
Description
|
|
Travel Size:
|
6300 L x 2200 W x 2365 H mm
|
|
Draw-bar:
|
Total Draw-bar size: 3600 mm (includes coupling 3800 mm)
|
|
Chassis:
|
Extra Heavy Duty off-road frame
|
|
Ball Weight:
|
Approx 280 KG
|
|
TARE Weight:
|
Approx 2400 KG
|
|
ATM:
|
2800KG
|
| Fridge Box Size: | 1960 L x 610 W x 510 H mm |
|
Suspension:
|
Coil spring, twin shock absorbers, independent trailing arm
|
|
Wheels and Tyres:
|
2 x Wheels, 2 x Brand New Spare 16” (265/75R16)
|
|
Brakes:
|
12-inch Electric Brakes and Hand Brake
|
|
Coupling:
|
Cruise master DO35 3.5T All-Terrain coupling with double safety chains
|
|
Finish:
|
Hot-Dip Galvanized steel frame
|
|
Jockey Wheel:
|
ARK XO 750 Series heavy duty dual jockey wheel
|
| Water tank: | 2 x 100 Liter freshwater tanks |
| Grey Tank: | 80 Liter grey water tank |
| Gas Bottle holder: | 2 x 9kg Gas bottle holders |
| Solar Panel: | 400W Roof mounted solar panel |
| Stabilizer legs: | 4 x quick lock-up and wind down drop-down stabilizer bars |
| Awning | Description |
| Awning Type: | Rollout |
| Awning Section: | 4700 L x 2000 W mm |
| Mattress: | 1900 L x 1750 W x 150 H mm (inner spring) |
| Windows: | Midge mesh Mosquito Proof netting & block out blinds on all windows |
| Mounting System: | Electric roof / Struts / Scissor arms |
| Extra features: | • High Strength Frame |
| Optional Extras: | • Fully Enclosed Annex • Caravan TV • Chest Fridge • Diesel Heater • Power Upgrade • Pedders Upgrade • Lovells Upgrade |
BLUEPRINT
LAYOUT
WEIGHTS & RATINGS
GENERAL DIMENSIONS
CHASSIS
EXTERIOR
INTERIOR
|
MAJOR APPLIANCES
ELECTRICAL
INTERNAL POWER OUTLETS
EXTERNAL POWER OUTLETS
OTHER FEATURES
|
|
Trailer
|
Description
|
|
Travel Size:
|
6300 L x 2200 W x 2365 H mm
|
|
Draw-bar:
|
Total Draw-bar size: 3600 mm (includes coupling 3800 mm)
|
|
Chassis:
|
Extra Heavy Duty off-road frame
|
|
Ball Weight:
|
Approx 280 KG
|
|
TARE Weight:
|
Approx 2400 KG
|
|
ATM:
|
2800KG
|
| Fridge Box Size: | 1960 L x 610 W x 510 H mm |
|
Suspension:
|
Coil spring, twin shock absorbers, independent trailing arm
|
|
Wheels and Tyres:
|
2 x Wheels, 2 x Brand New Spare 16” (265/75R16)
|
|
Brakes:
|
12-inch Electric Brakes and Hand Brake
|
|
Coupling:
|
Cruise master DO35 3.5T All-Terrain coupling with double safety chains
|
|
Finish:
|
Hot-Dip Galvanized steel frame
|
|
Jockey Wheel:
|
ARK XO 750 Series heavy duty dual jockey wheel
|
| Water tank: | 2 x 100 Liter freshwater tanks |
| Grey Tank: | 80 Liter grey water tank |
| Gas Bottle holder: | 2 x 9kg Gas bottle holders |
| Solar Panel: | 400W Roof mounted solar panel |
| Stabilizer legs: | 4 x quick lock-up and wind down drop-down stabilizer bars |
| Awning | Description |
| Awning Type: | Rollout |
| Awning Section: | 4700 L x 2000 W mm |
| Mattress: | 1900 L x 1750 W x 150 H mm (inner spring) |
| Windows: | Midge mesh Mosquito Proof netting & block out blinds on all windows |
| Mounting System: | Electric roof / Struts / Scissor arms |
| Extra features: | • High Strength Frame |
| Optional Extras: | • Fully Enclosed Annex • Caravan TV • Chest Fridge • Diesel Heater • Power Upgrade • Pedders Upgrade • Lovells Upgrade |
*Disclaimer: Information in this brochure may change without notice. While we strive for accuracy, Star Vision reserves the right to modify product specifications for ongoing improvements.
Please consult with a Star Vision representative to confirm current specifications before purchase. Star Vision is not liable for reliance on this information. All rights reserved.
