Features:
- Easy to set up
- Projecta Battery Management System
- DC to DC Battery Charger
- 2 x 135Ah Lithium Iron Phosphate Batteries
- 14L Truma UltraRapid Hot Water System
- 400W Roof mounted solar panel
- 2000W Power inverter
- 120 + 80 Litre fresh water tanks
- 80 Litre grey water tank
- Galley Kitchen
- Internal Combo Ensuite
- Double spare wheel
Dimensions & Weight
From: $52,990+ Dealer Delivery & On Road Costs or $191 a week Financed
Features:
- Easy to set up
- Projecta Battery Management System
- DC to DC Battery Charger
- 2 x 135Ah Lithium Iron Phosphate Batteries
- 14L Truma UltraRapid Hot Water System
- 400W Roof mounted solar panel
- 2000W Power inverter
- 120 + 80 Litre fresh water tanks
- 80 Litre grey water tank
- Galley Kitchen
- Internal Combo Ensuite
- Double spare wheel
Dimensions & Weight
From: $52,990+ Dealer Delivery & On Road Costs or $191 a week Financed
Benefits & Features

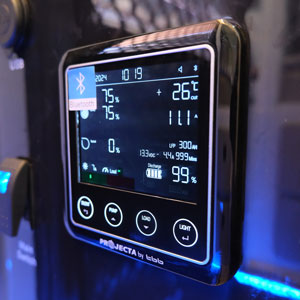

PROJECTA BATTERY MANAGEMENT SYSTEM
All inbuilt Projecta Charger & Projecta MPPT Solar Controller with an LCD Display. With the ability to monitor your battery & solar input and output. It is also all easily accessible through Bluetooth.

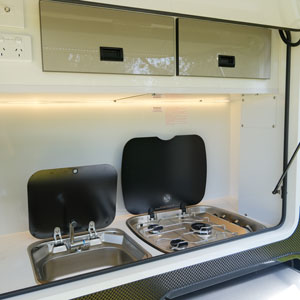

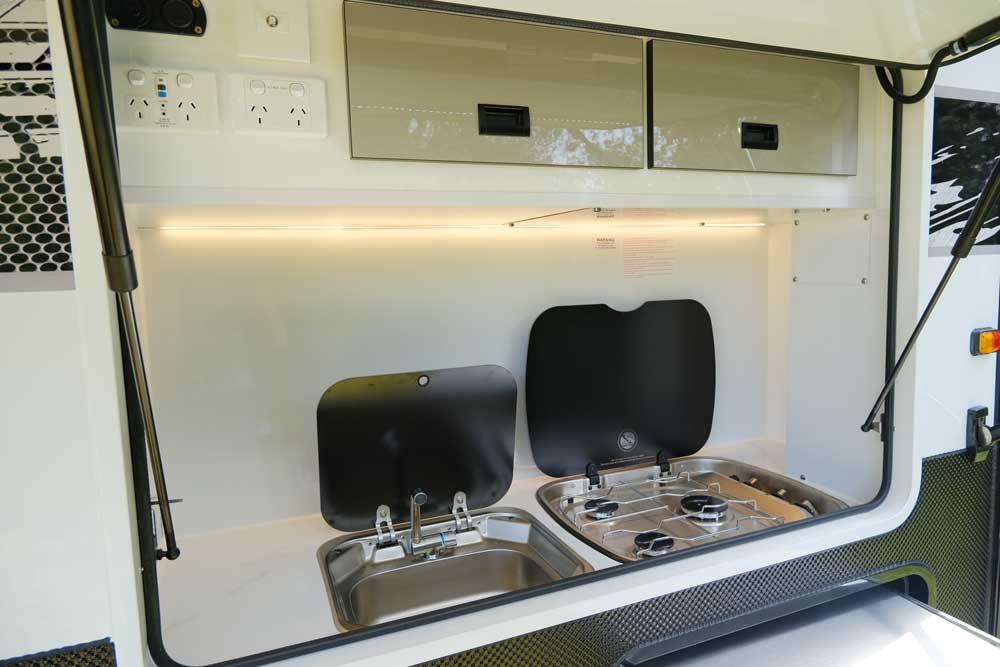

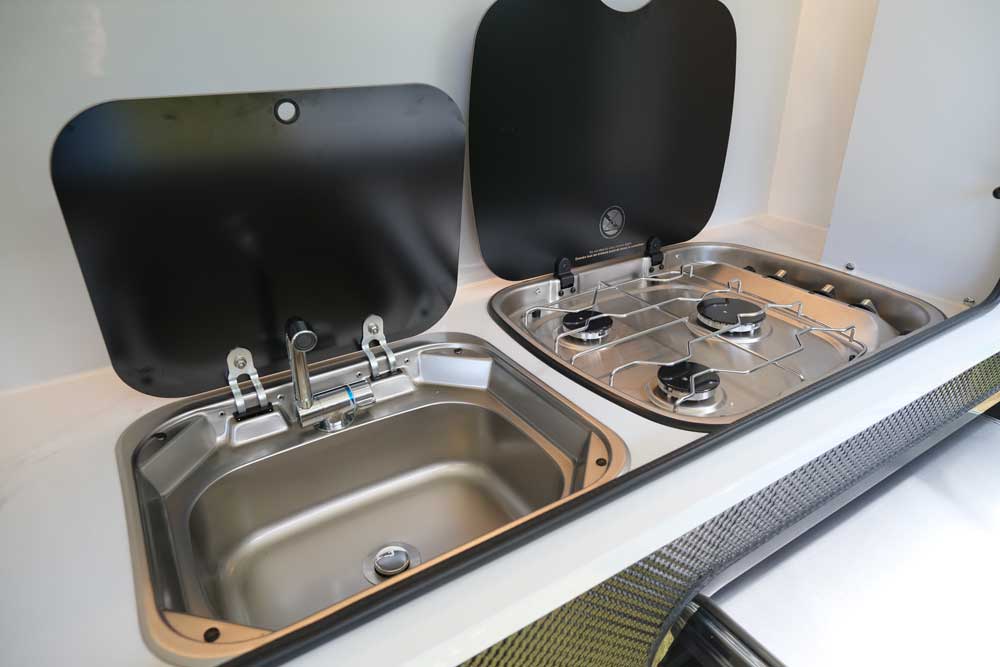

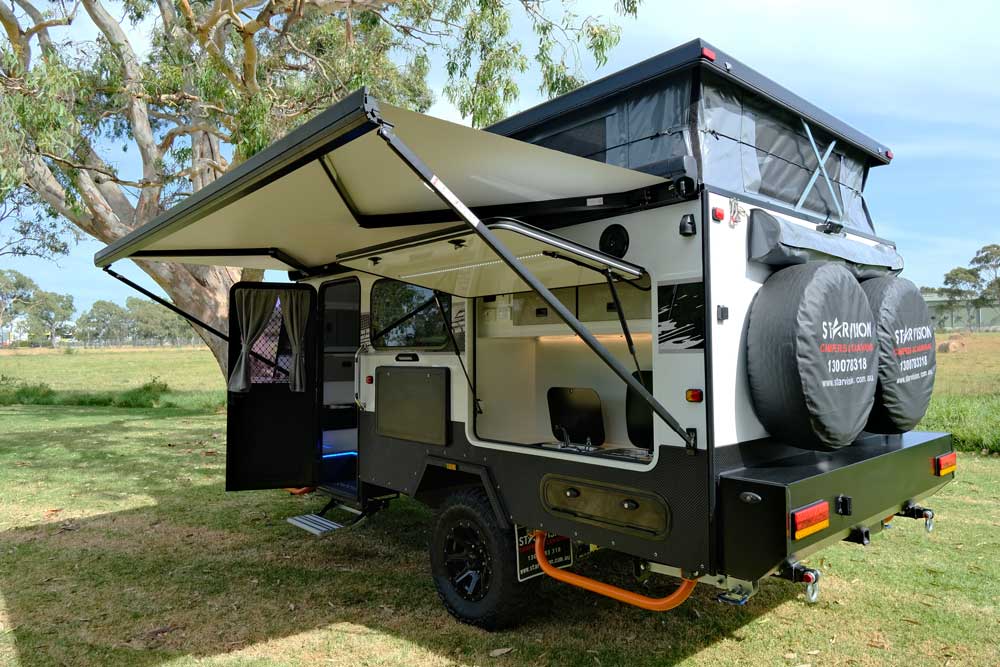

OUTDOOR KITCHEN
The outdoor kitchen is spacious and organized. Provided with a Thetford 3 LPG Gas Burner Cooktop, it can serve your whole family well. Gas cooking is also great for you cooking professionally.

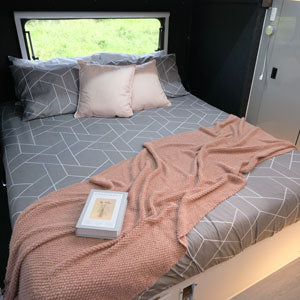

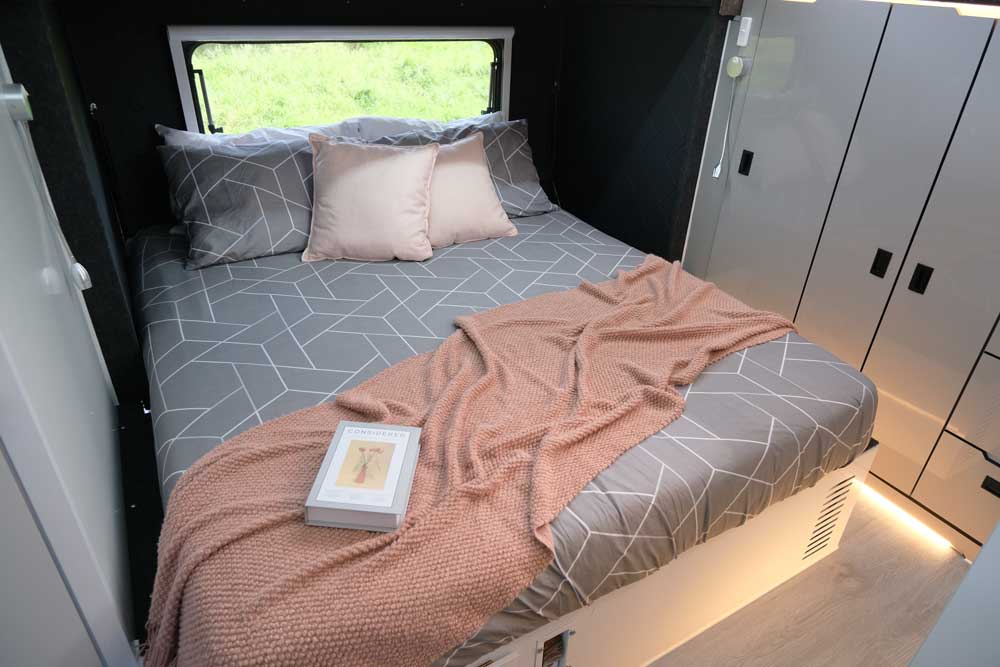

QUEEN MATTRESS
Equipped with a big and comfortable queen size mattress. Providing a pleasant sleeping environment during your camping trip, which enables your to relax completely.

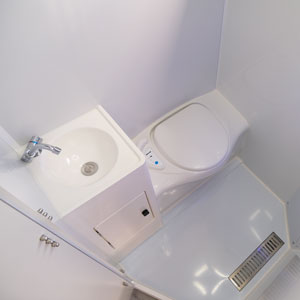

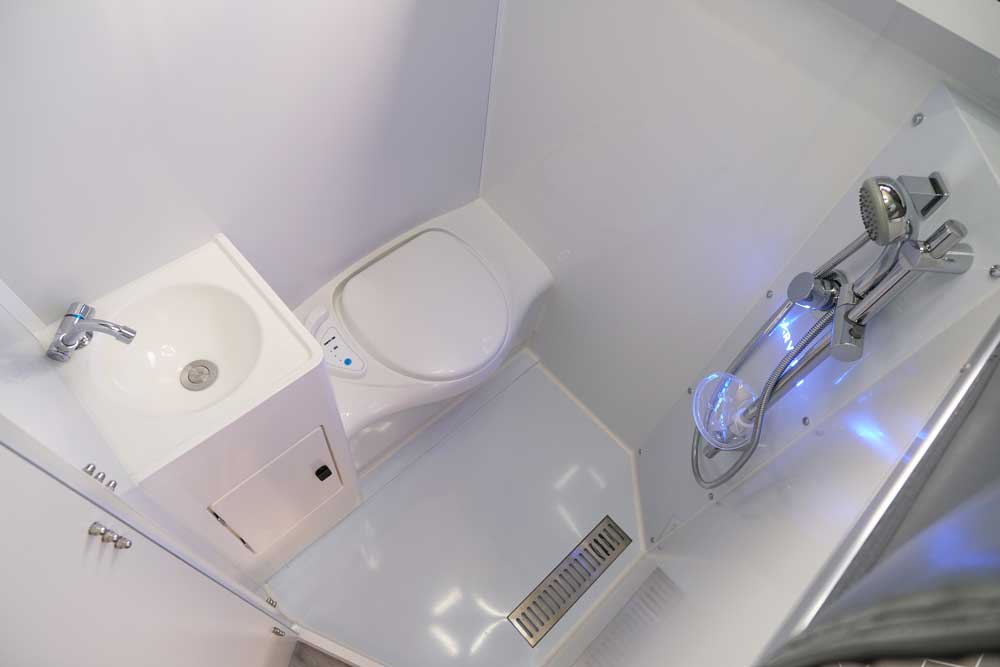

COMBO SHOWER/TOILET
Equipped with a premium Thetford toilet and an internal shower - there is no need to worry when you can't find public toilets at your campsite. A luxurious internal shower means after a long day of activates you can come back and take a relaxing hot shower.
Side View

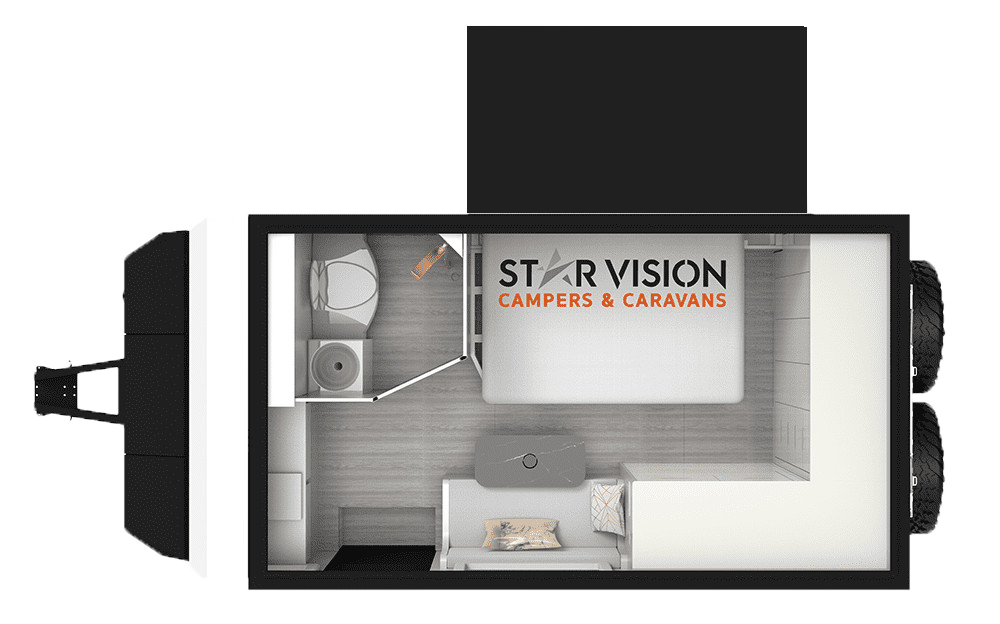

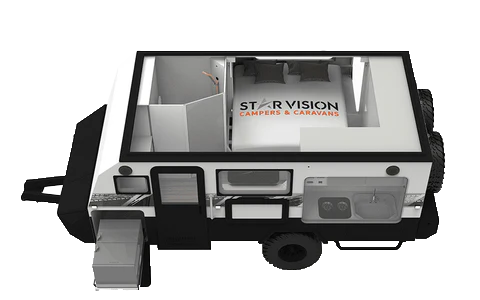

Top View

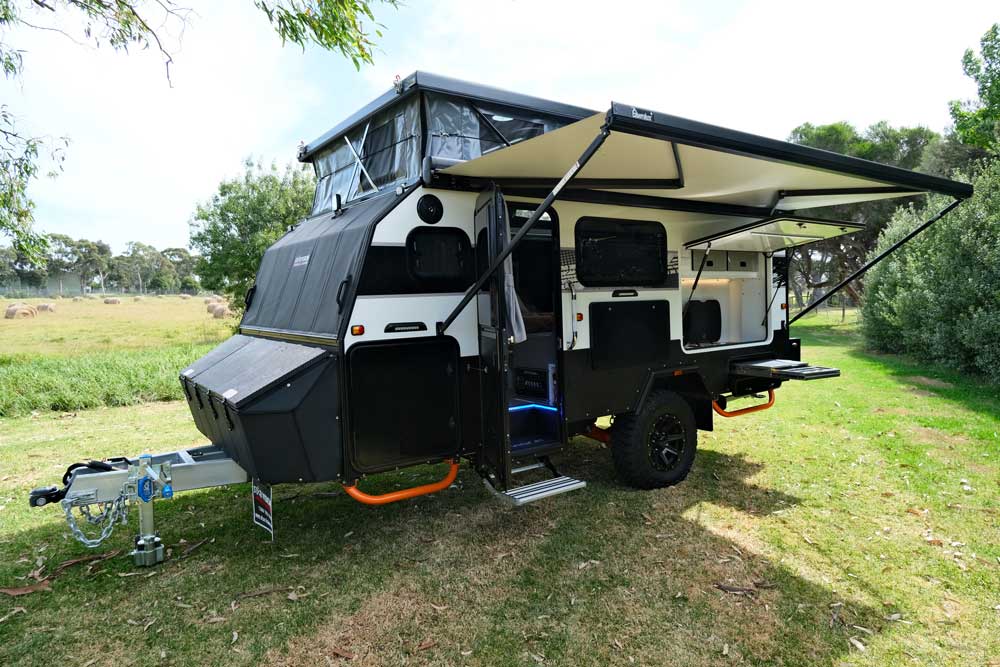

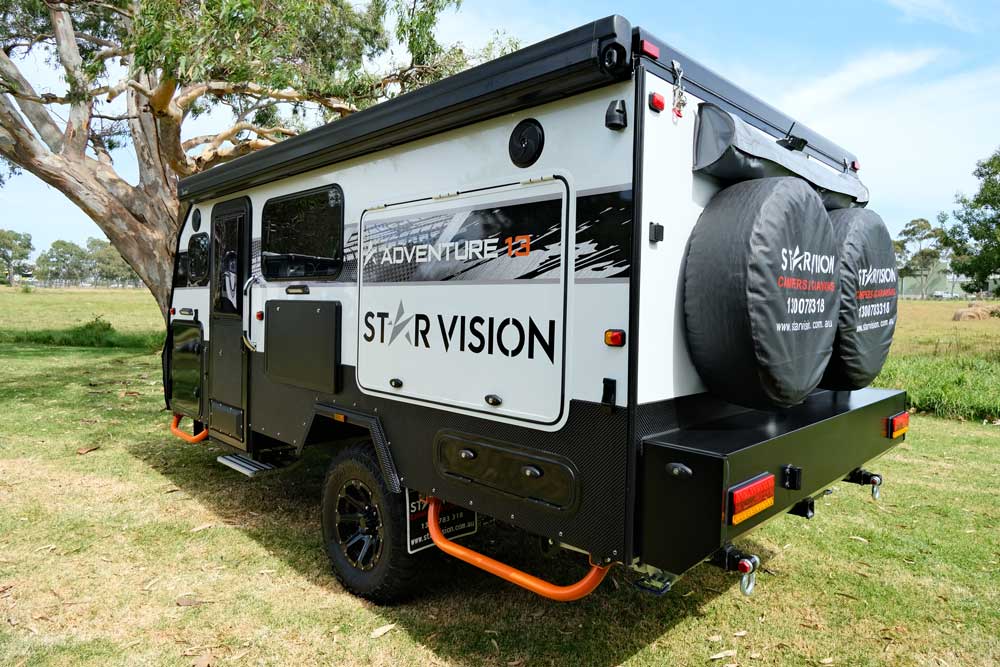

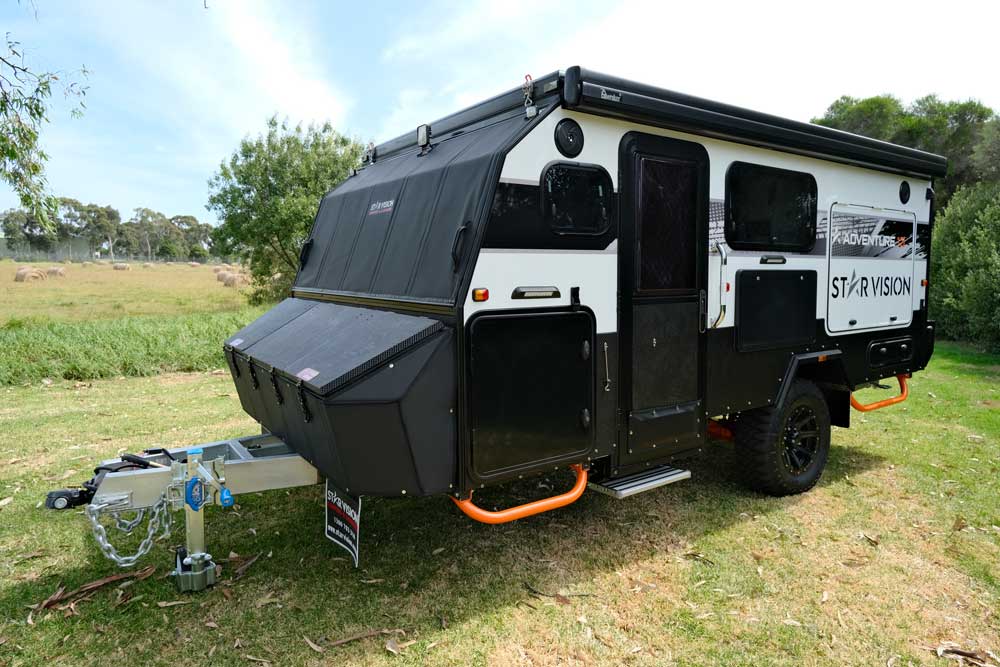

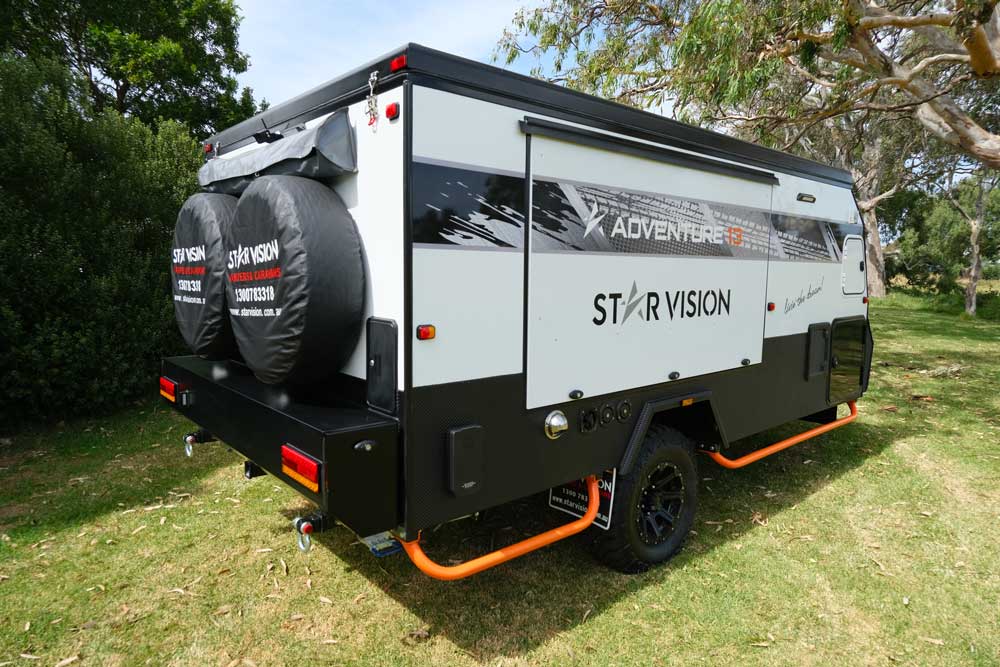

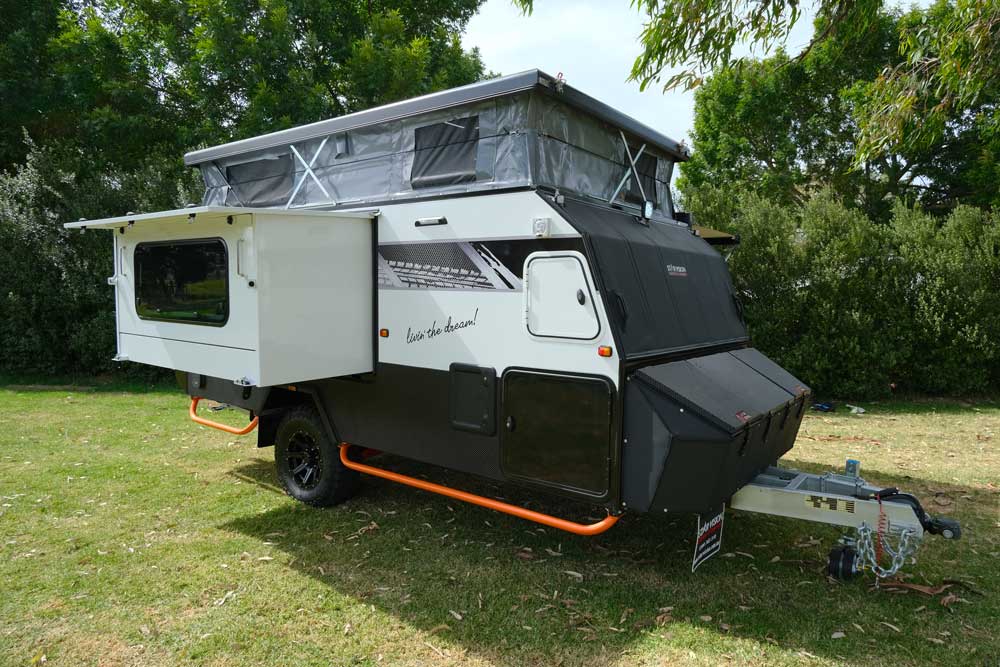

EXTERIOR

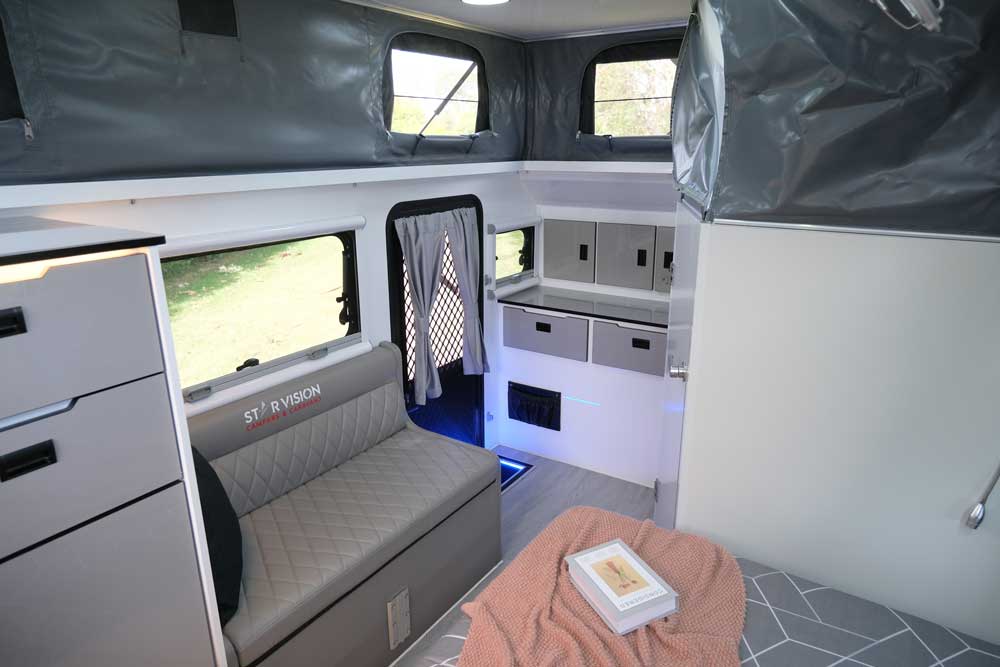

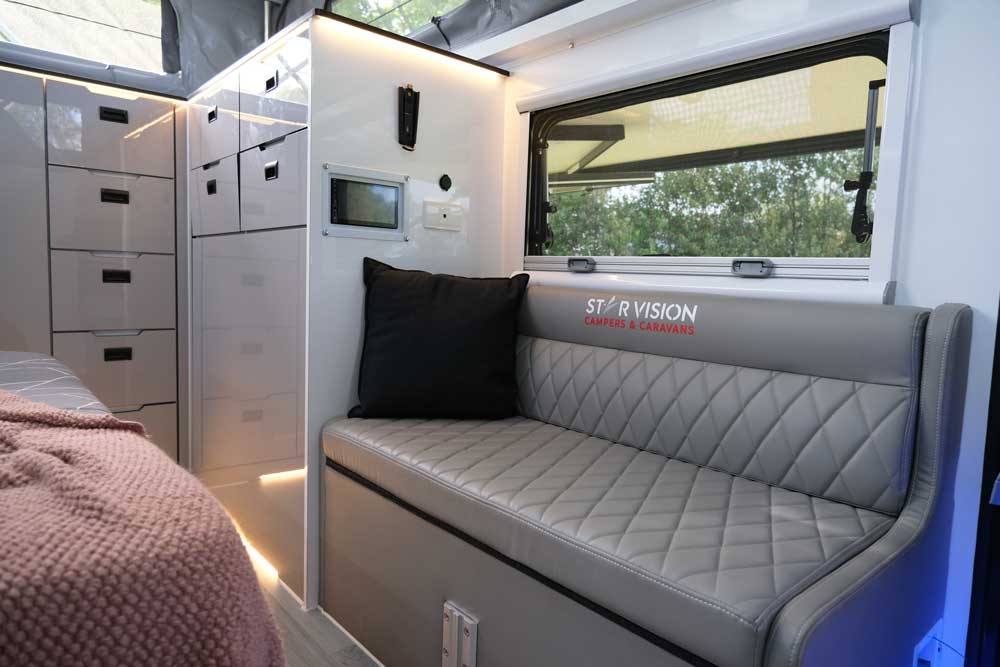

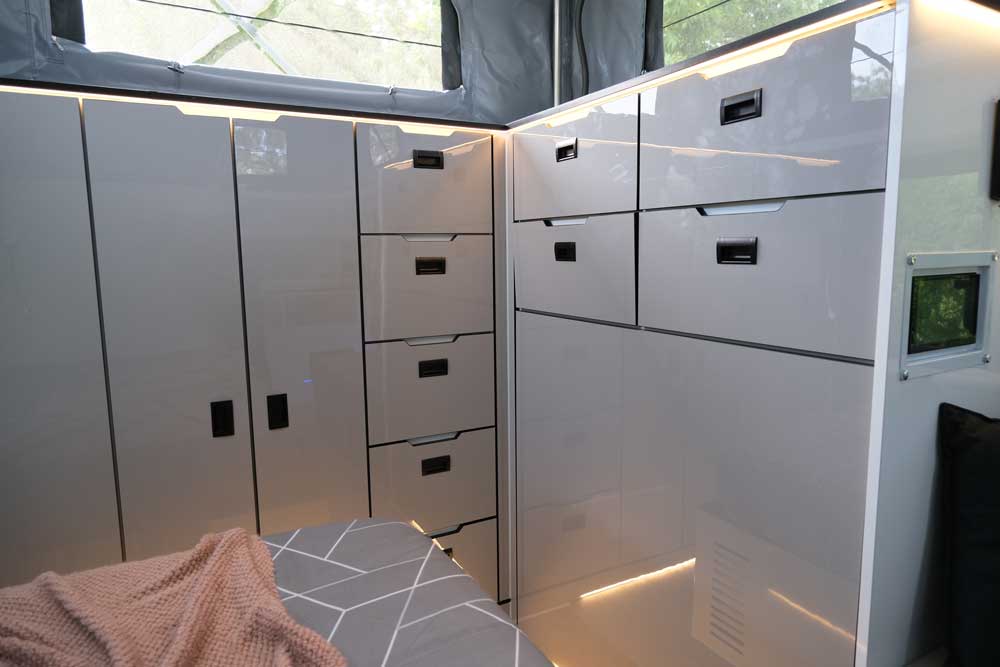

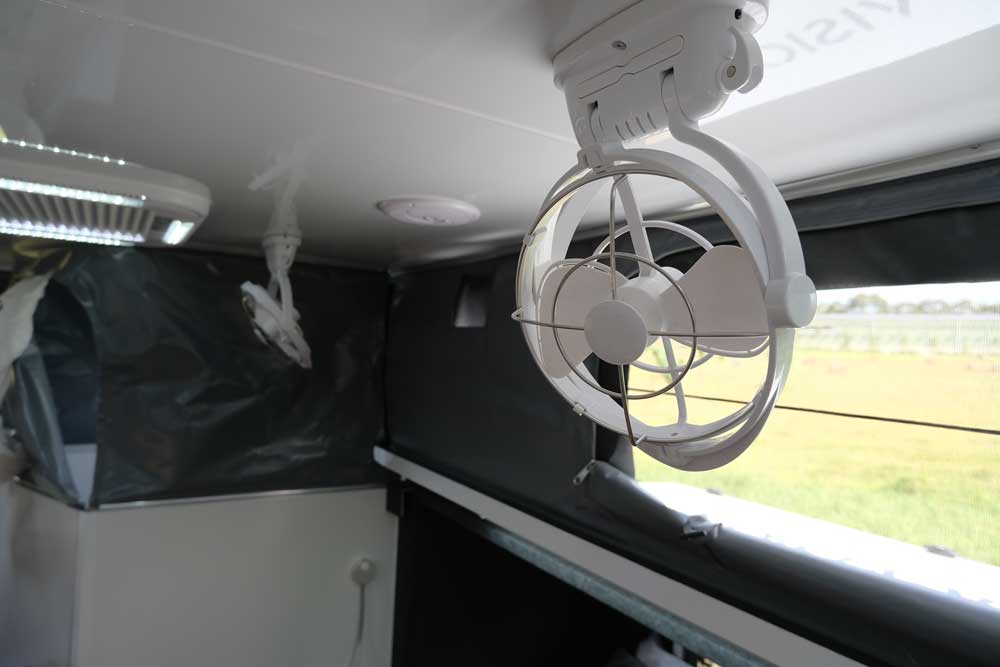

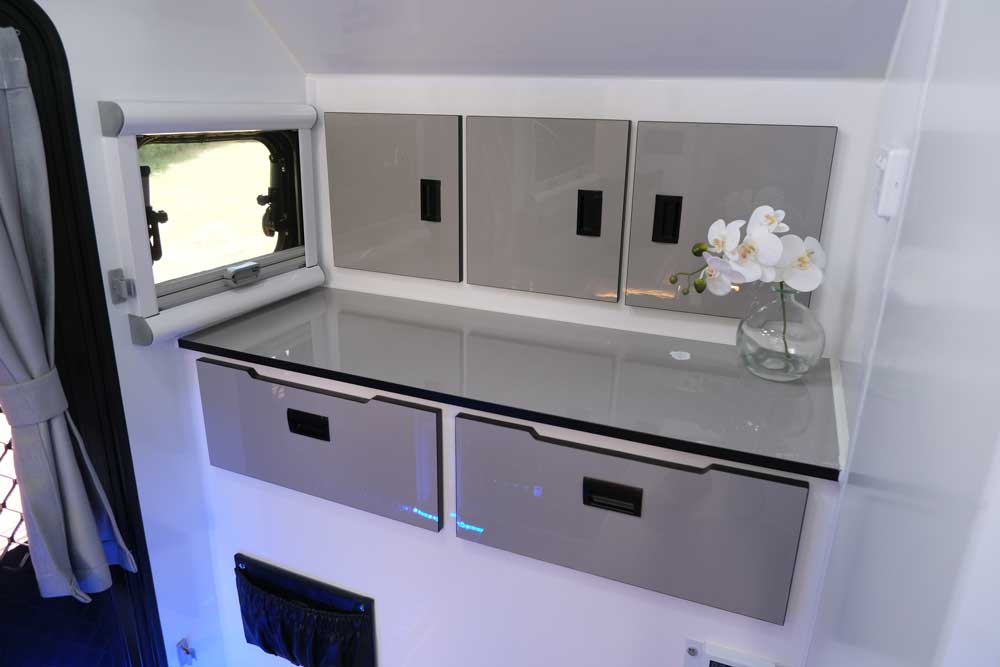

INTERIOR
Additional Details
DETAILS
|
|
SPECIFICATION
|
Trailer
|
Description
|
|
Travel Size:
|
5900 L x 2200 W x 2350 H mm
|
|
Draw-bar:
|
Coupling to body: 880 mm
|
|
Chassis:
|
Extra Heavy Duty off-road frame
|
|
Ball Weight:
|
Approx 210 KG
|
|
TARE Weight:
|
Approx 2120 KG
|
|
ATM:
|
2700KG
|

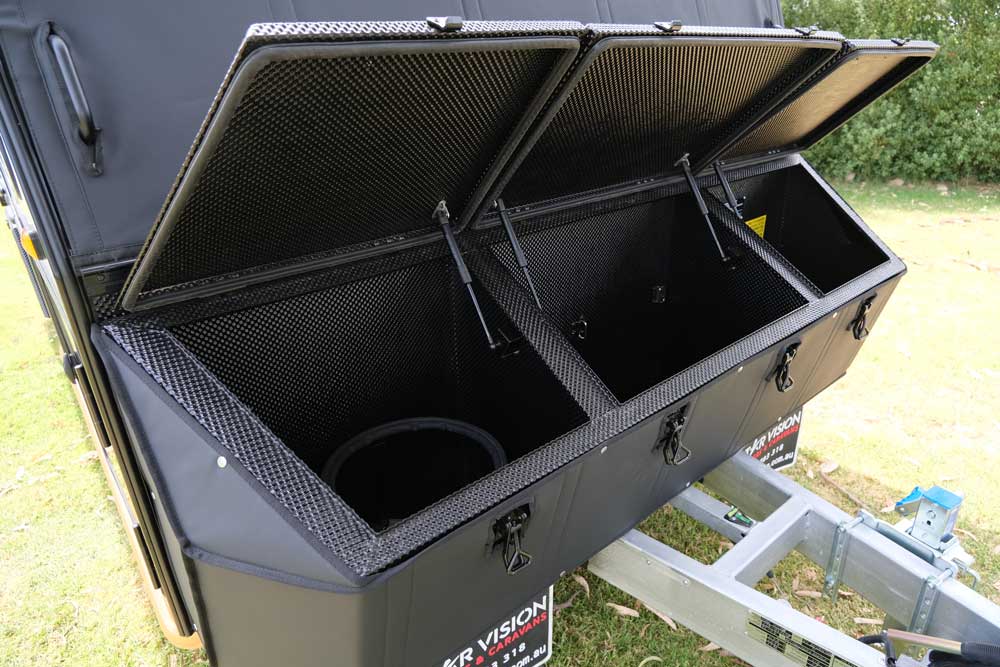

| Toolbox Size: | 2050 L x 450 W x 620 tapered to 420 H mm |

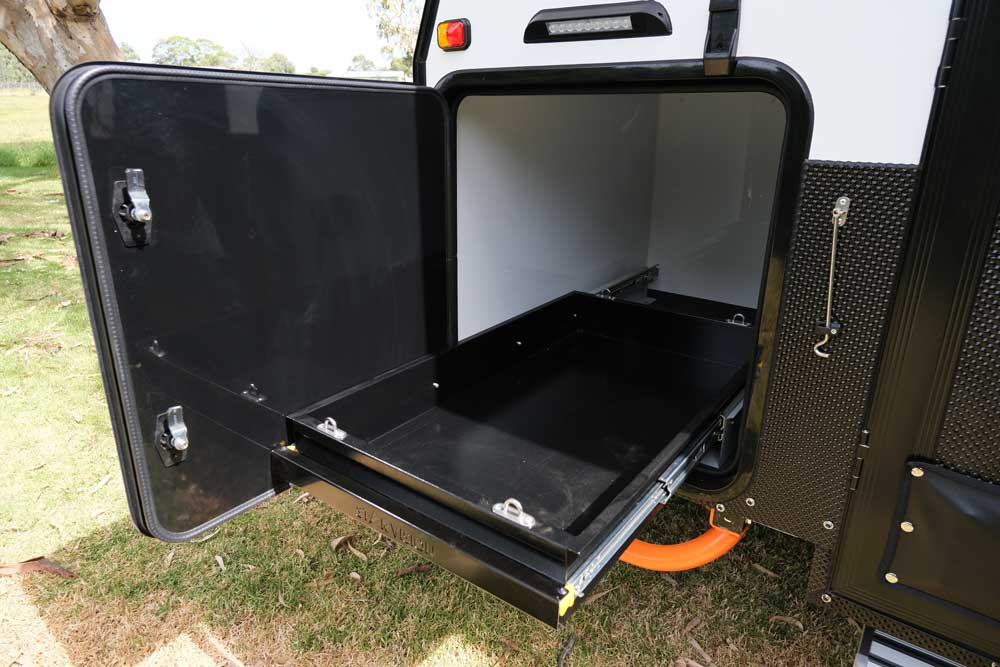

| Fridge Slide Size: | 855 L x 500 W x 595 H mm |

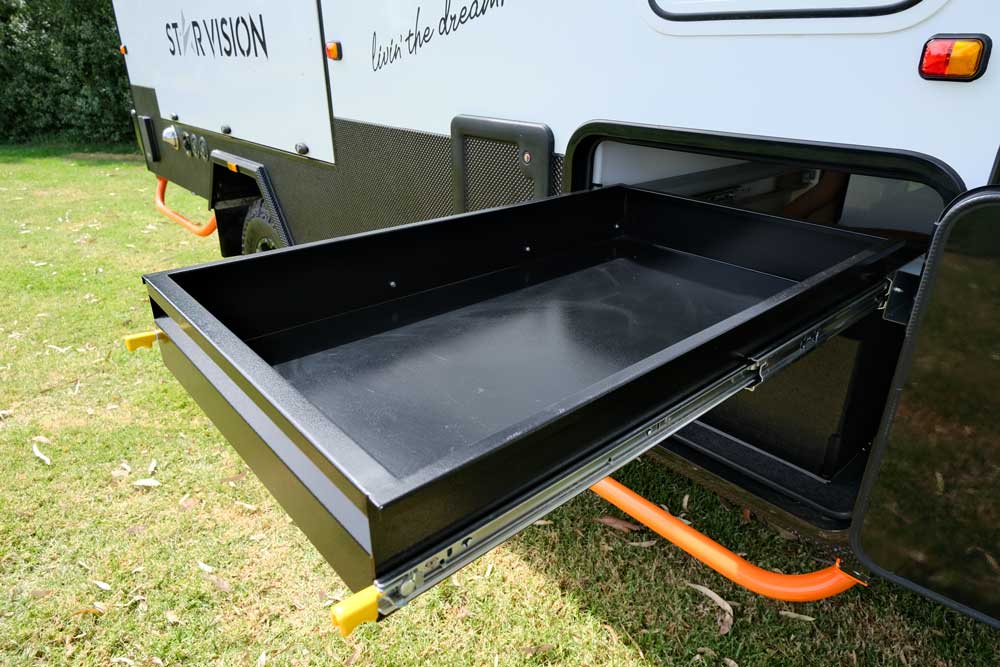

| Additional Slide Size: | 855 L x 500 W x 200 H mm |
|
Suspension:
|
Coil spring, twin shock absorbers, independent trailing arm
|
|
Wheels and Tyres:
|
2 x Wheels, 2 x Brand New Spare 16” (265/75R16)
|
|
Brakes:
|
12-inch Electric Brakes and Hand Brake
|
|

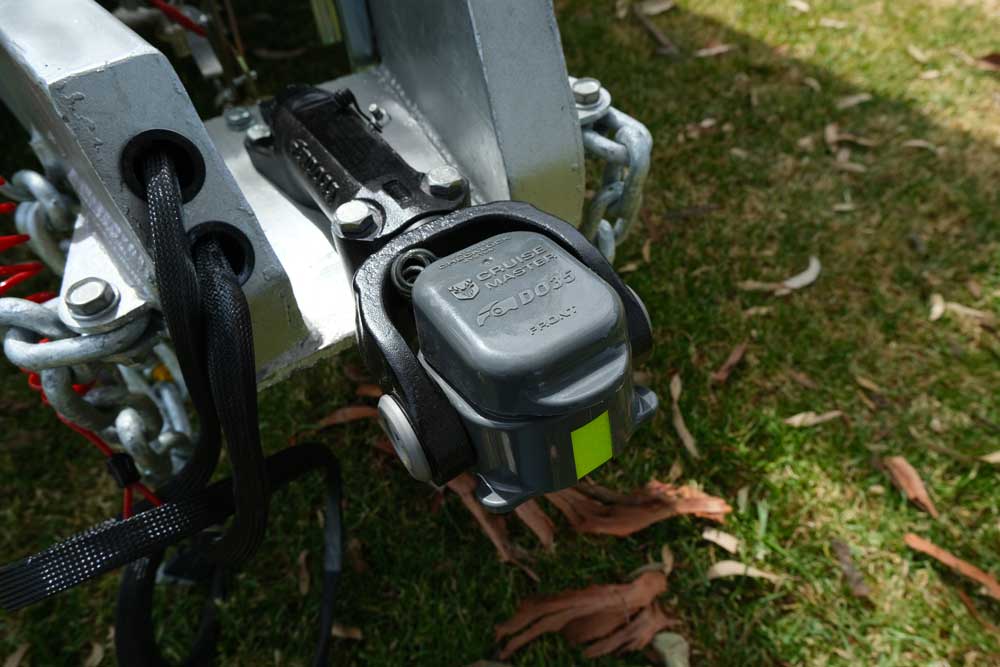

Coupling:
|
Cruise master DO35 3.5T All-Terrain coupling with double safety chains
|
|
Finish:
|
Hot-Dip Galvanized steel frame
|
|

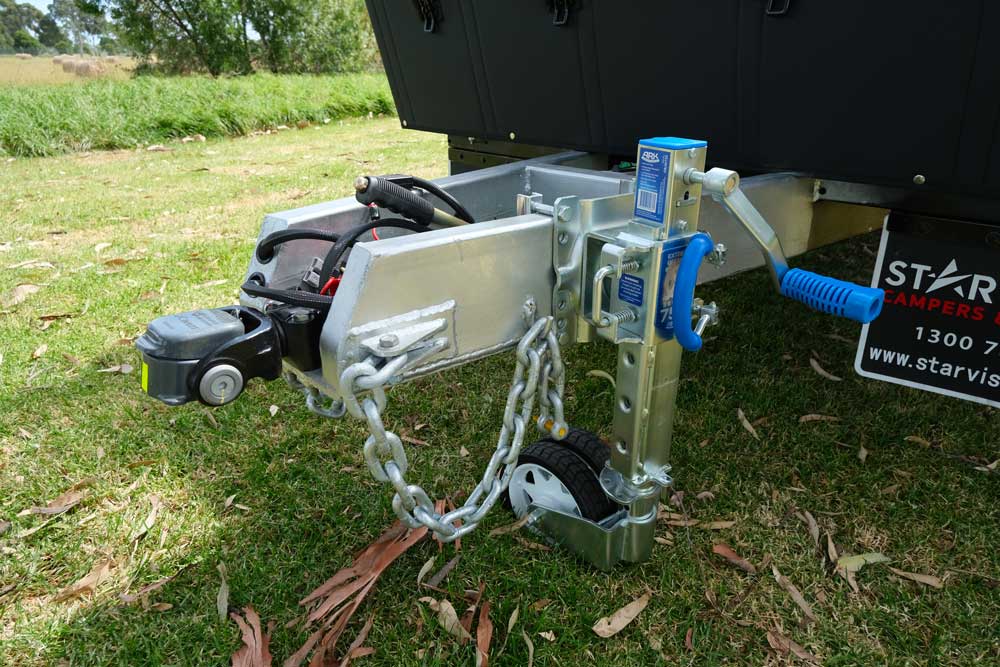

Jockey Wheel:
|
ARK XO 750 Series heavy duty dual jockey wheel
|
| Water tank: | 120 + 80 Litre fresh water tanks |
| Grey Tank: | 80 Liter grey water tank |

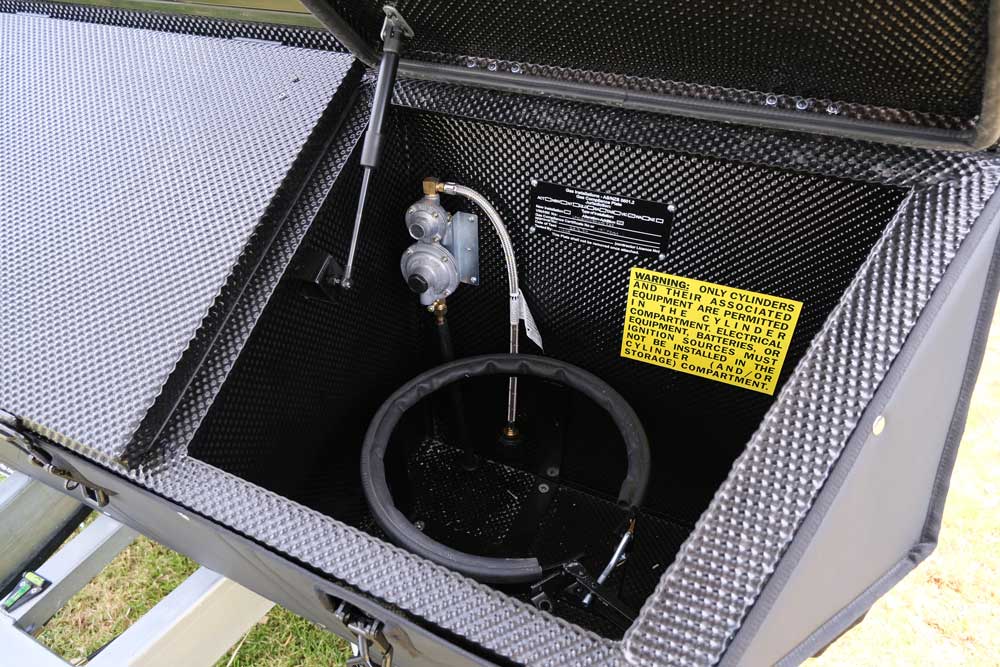

| Gas Bottle holder: | 2 x 9kg Gas bottle holders |
| Jerry Can Holder: | Jerry can attachment points |
| Solar Panel: | 400W Roof mounted solar panel |
| Stabilizer legs: | 4 x quick lock-up and wind down drop-down stabilizer bars |
| Awning | Description |
| Awning Type: | Manual |
| Awning Section: | 3600 x 2500 mm |
| Mattress: | 1830 L x 1500 W x 180 H mm |
| Windows: | Midge mesh Mosquito Proof netting & block out blinds on all windows |
| Mounting System: | Electric roof / Struts / Scissor arms |
| Extra features: |

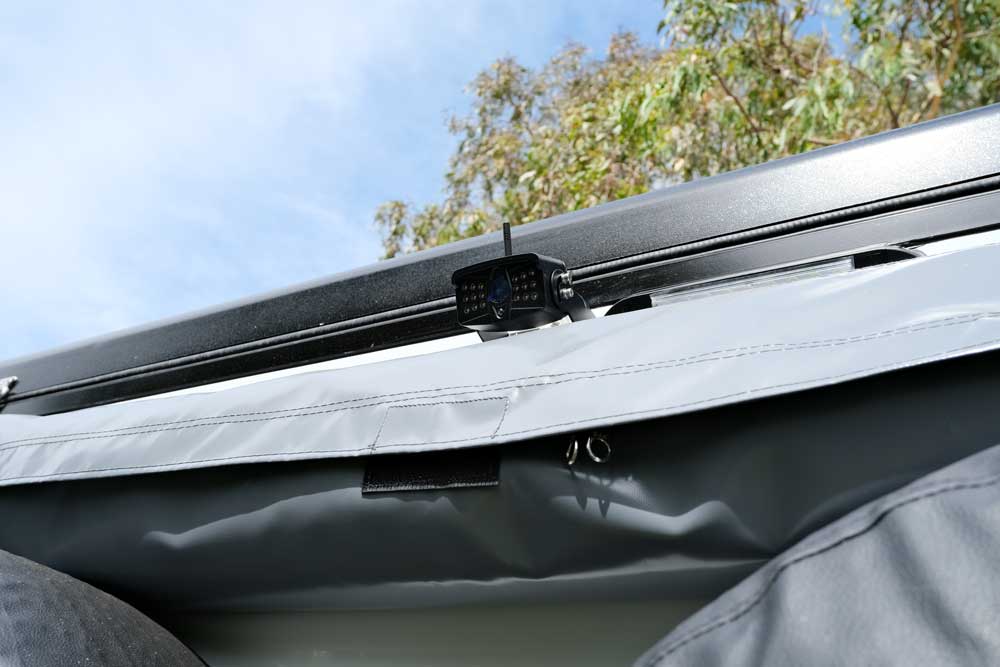

• Easy electric roof enables easy setup • High Strength Frame • Reverse Camera |
| Optional Extras: |
• Fully Enclosed Annex • Caravan TV • Chest Fridge • Diesel Heater • Power Upgrade • Pedders Upgrade • Lovells Upgrade |
BLUEPRINT
|
|
|
Trailer
|
Description
|
|
Travel Size:
|
5900 L x 2200 W x 2350 H mm
|
|
Draw-bar:
|
Coupling to body: 880 mm
|
|
Chassis:
|
Extra Heavy Duty off-road frame
|
|
Ball Weight:
|
Approx 210 KG
|
|
TARE Weight:
|
Approx 2120 KG
|
|
ATM:
|
2700KG
|
| Toolbox Size: | 2050 L x 450 W x 620 tapered to 420 H mm |
| Fridge Slide Size: | 855 L x 500 W x 595 H mm |
| Additional Slide Size: | 855 L x 500 W x 200 H mm |
|
Suspension:
|
Coil spring, twin shock absorbers, independent trailing arm
|
|
Wheels and Tyres:
|
2 x Wheels, 2 x Brand New Spare 16” (265/75R16)
|
|
Brakes:
|
12-inch Electric Brakes and Hand Brake
|
|
Coupling:
|
Cruise master DO35 3.5T All-Terrain coupling with double safety chains
|
|
Finish:
|
Hot-Dip Galvanized steel frame
|
|
Jockey Wheel:
|
ARK XO 750 Series heavy duty dual jockey wheel
|
| Water tank: | 120 + 80 Litre fresh water tanks |
| Grey Tank: | 80 Liter grey water tank |
| Gas Bottle holder: | 2 x 9kg Gas bottle holders |
| Jerry Can Holder: | Jerry can attachment points |
| Solar Panel: | 400W Roof mounted solar panel |
| Stabilizer legs: | 4 x quick lock-up and wind down drop-down stabilizer bars |
| Awning | Description |
| Awning Type: | Manual |
| Awning Section: | 3600 x 2500 mm |
| Mattress: | 1830 L x 1500 W x 180 H mm |
| Windows: | Midge mesh Mosquito Proof netting & block out blinds on all windows |
| Mounting System: | Electric roof / Struts / Scissor arms |
| Extra features: |
• Easy electric roof enables easy setup • High Strength Frame • Reverse Camera |
| Optional Extras: |
• Fully Enclosed Annex • Caravan TV • Chest Fridge • Diesel Heater • Power Upgrade • Pedders Upgrade • Lovells Upgrade |
*Disclaimer: Information in this brochure may change without notice. While we strive for accuracy, Star Vision reserves the right to modify product specifications for ongoing improvements.
Please consult with a Star Vision representative to confirm current specifications before purchase. Star Vision is not liable for reliance on this information. All rights reserved.
