Features:
- Easy to set up
- Projecta Battery Management System
- DC to DC Battery Charger
- 2 x 135Ah Lithium Iron Phosphate Batteries
- 14L Truma UltraRapid Hot Water System
- 400W Roof mounted solar panel
- 2000W Power inverter
- 120 + 80 Litre fresh water tanks
- 80 Litre grey water tank
- Galley Kitchen
- Internal Combo Ensuite
- Double spare wheel
![](http://starvision.com.au/cdn/shop/files/SV13_d76378bc-e1eb-42c3-8000-2cd5f3908550.jpg?v=1718670745&width=731)
Dimensions & Weight
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/BLUEPRINTS-02.jpg?v=1715732625)
Features:
- Easy to set up
- Projecta Battery Management System
- DC to DC Battery Charger
- 2 x 135Ah Lithium Iron Phosphate Batteries
- 14L Truma UltraRapid Hot Water System
- 400W Roof mounted solar panel
- 2000W Power inverter
- 120 + 80 Litre fresh water tanks
- 80 Litre grey water tank
- Galley Kitchen
- Internal Combo Ensuite
- Double spare wheel
![](http://starvision.com.au/cdn/shop/files/SV13_d76378bc-e1eb-42c3-8000-2cd5f3908550.jpg?v=1718670745&width=731)
Dimensions & Weight
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/BLUEPRINTS-02.jpg?v=1715732625)
Benefits & Features
![](http://starvision.com.au/cdn/shop/files/IMG_8893p.jpg?v=1715733889&width=2543)

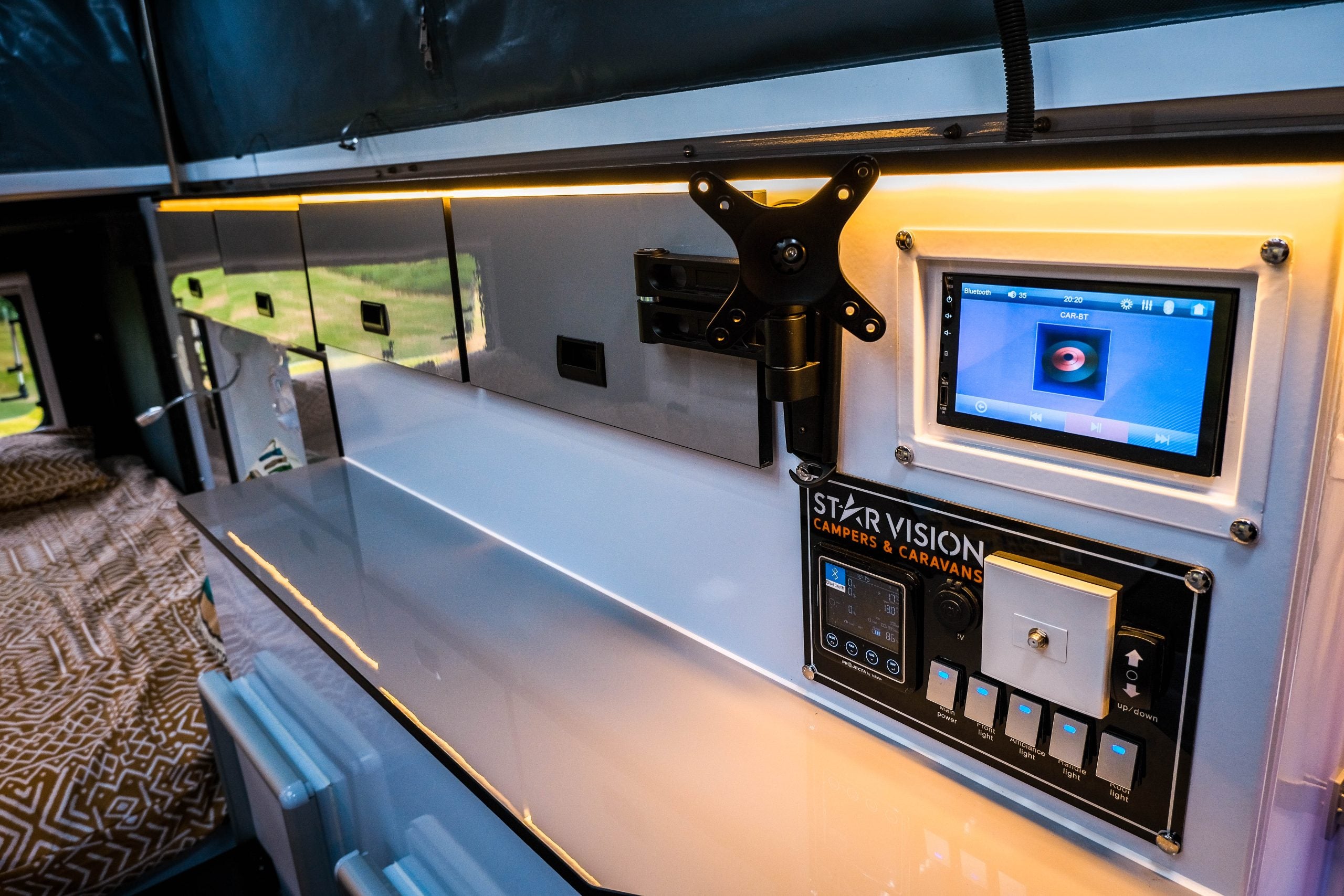

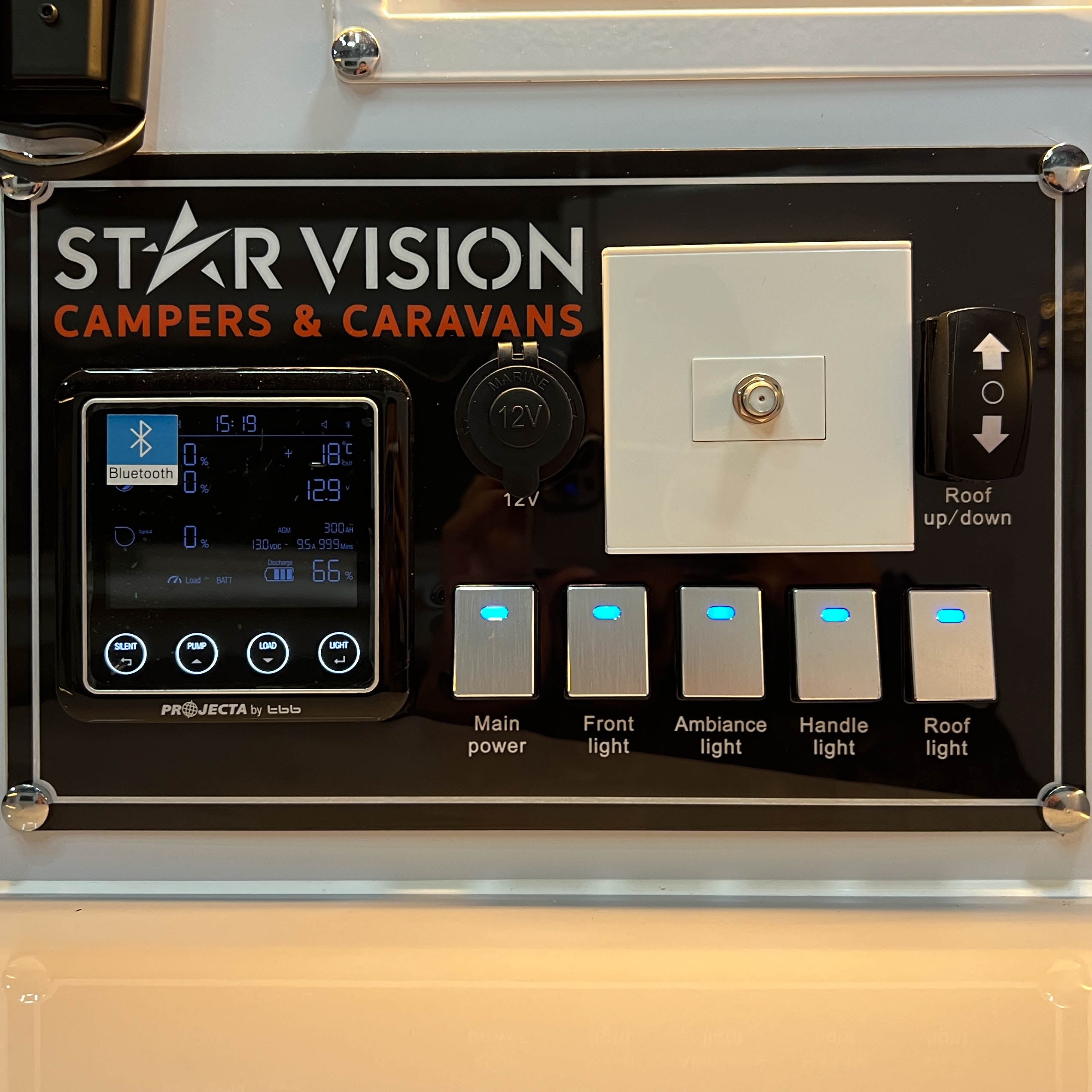

PROJECTA BATTERY MANAGEMENT SYSTEM
All inbuilt Projecta Charger & Projecta MPPT Solar Controller with an LCD Display. With the ability to monitor your battery & solar input and output. It is also all easily accessible through Bluetooth.
![](http://starvision.com.au/cdn/shop/files/DSCF2103-1.jpg?v=1715733945&width=996)

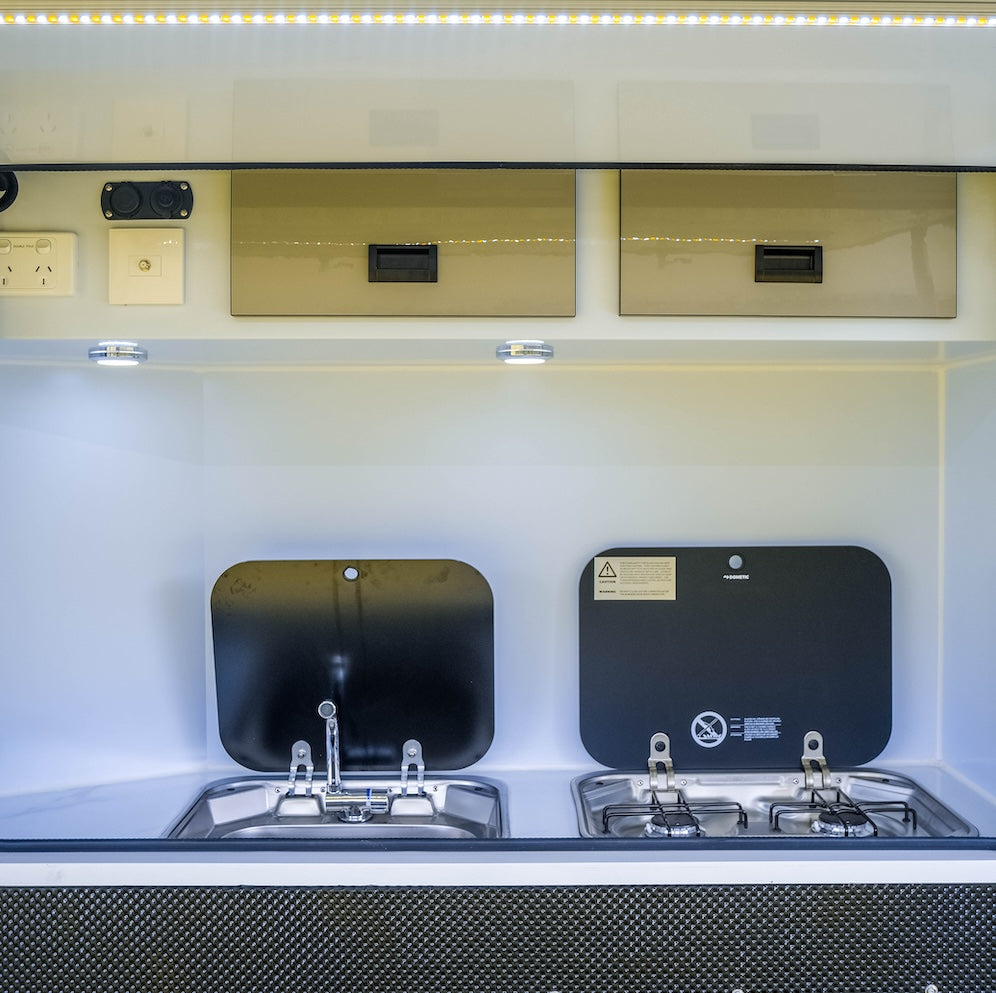

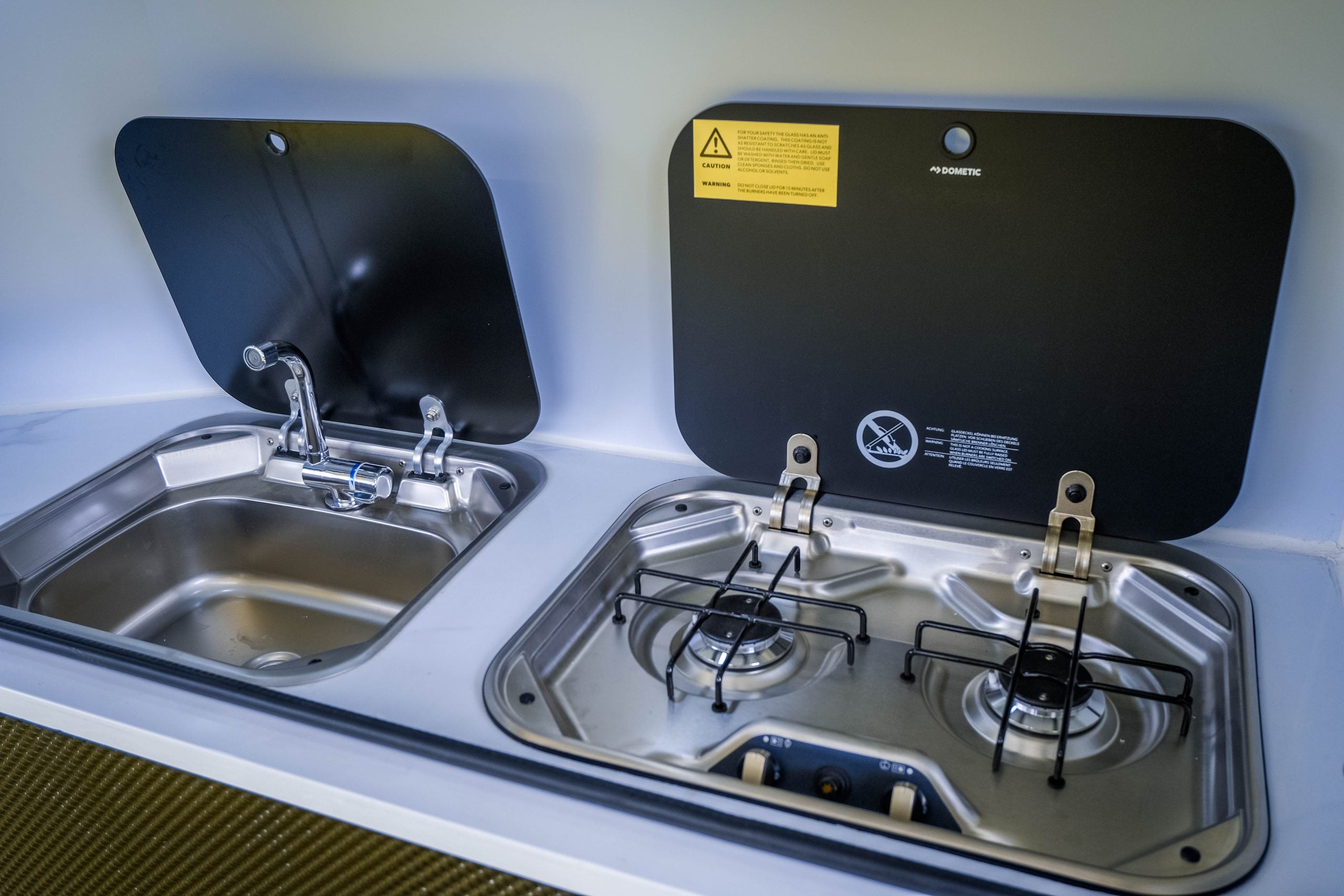

OUTDOOR KITCHEN
The outdoor kitchen is spacious and organized. Provided with a Dometic 2 LPG Gas Burner Cooktop, it can serve your whole family well. Gas cooking is also great for you cooking professionally.
![](http://starvision.com.au/cdn/shop/files/DSCF2139pp-1.jpg?v=1715733965&width=997)

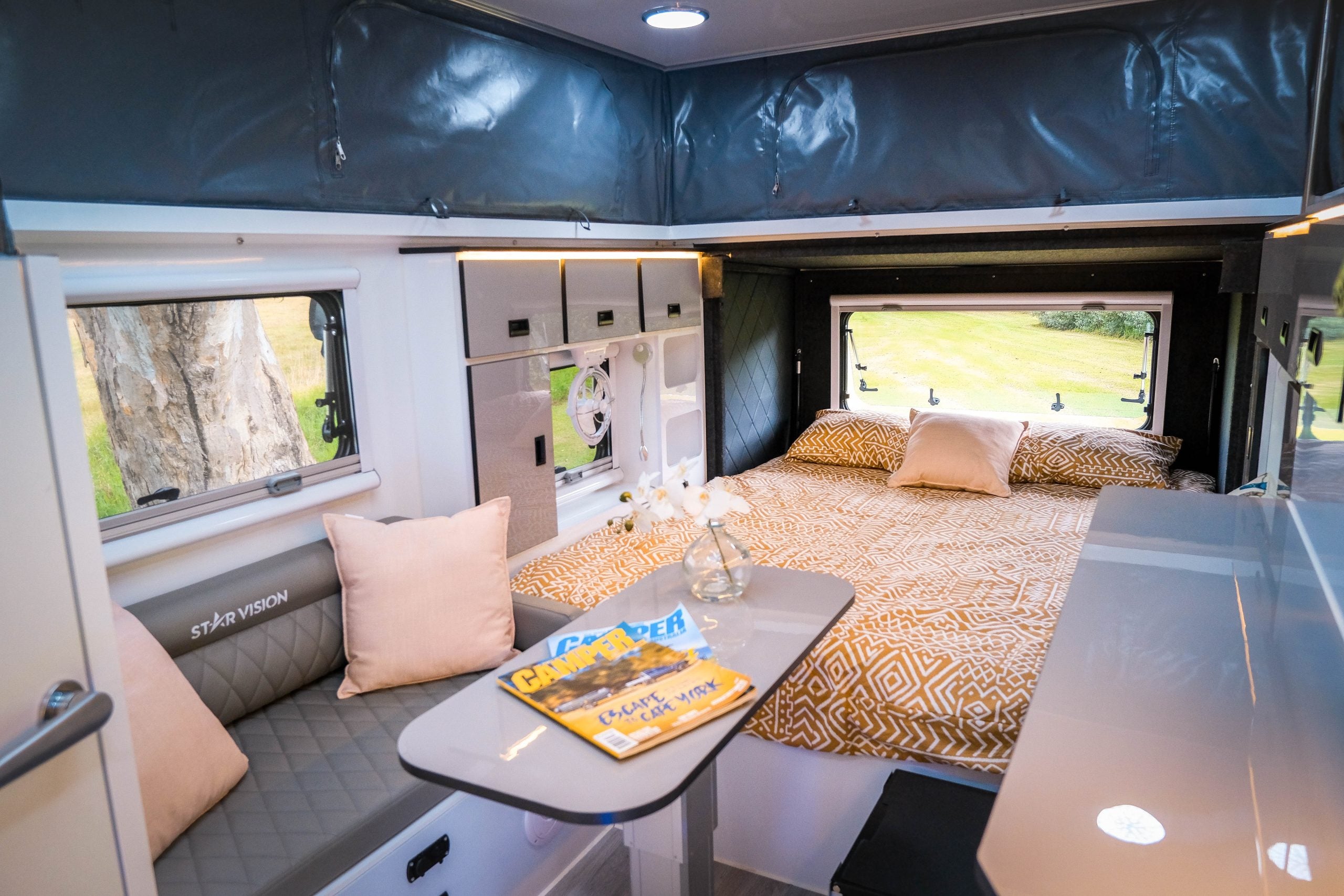

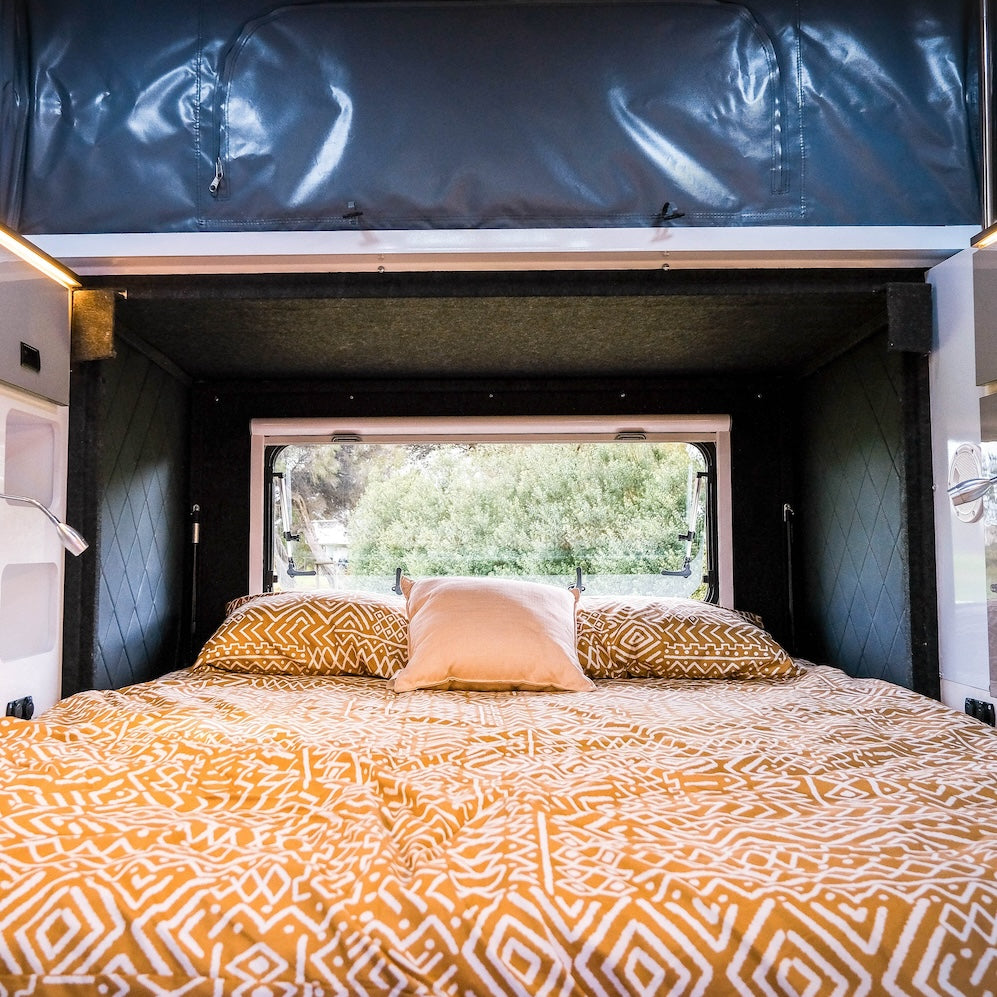

QUEEN MATTRESS
Equipped with a big and comfortable queen size mattress. Providing a pleasant sleeping environment during your camping trip, which enables your to relax completely.
![](http://starvision.com.au/cdn/shop/files/DSCF2128p-1.jpg?v=1715734012&width=997)

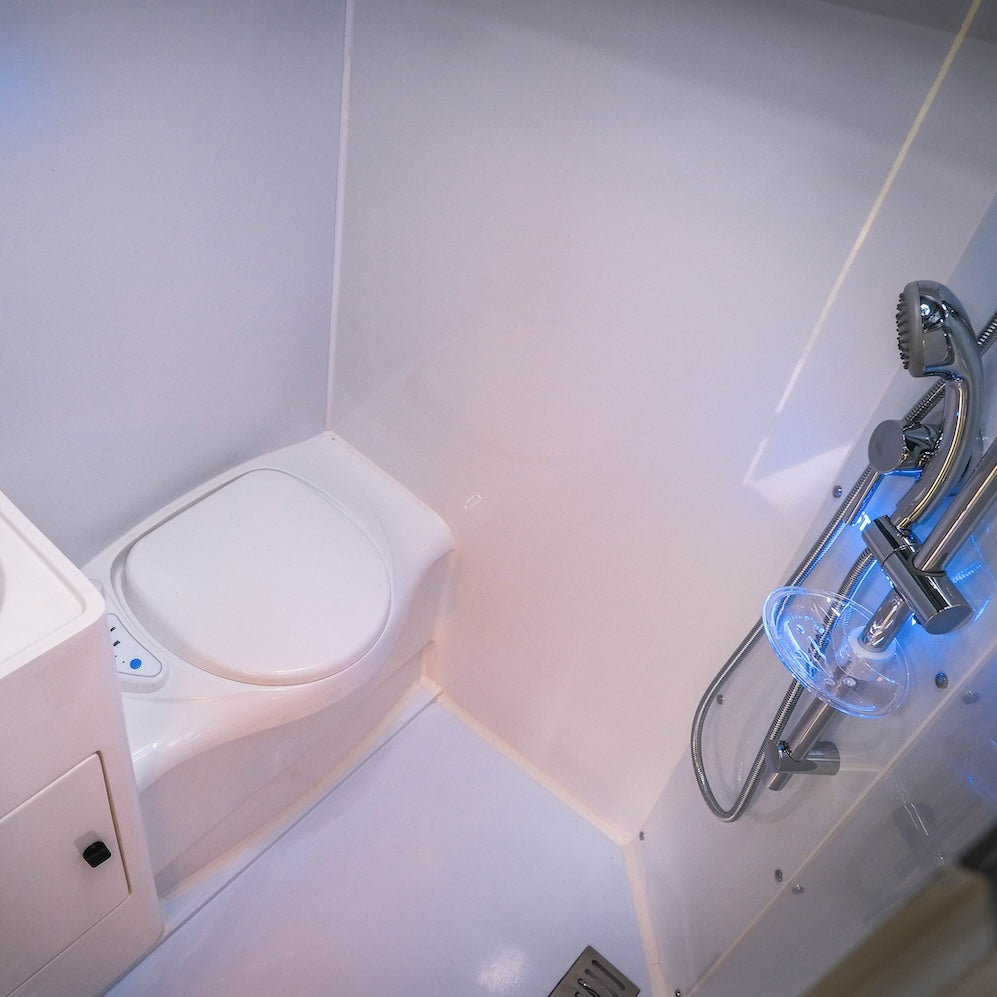

COMBO SHOWER/TOILET
Equipped with a premium Thetford toilet and an internal shower - there is no need to worry when you can't find public toilets at your campsite. A luxurious internal shower means after a long day of activates you can come back and take a relaxing hot shower.

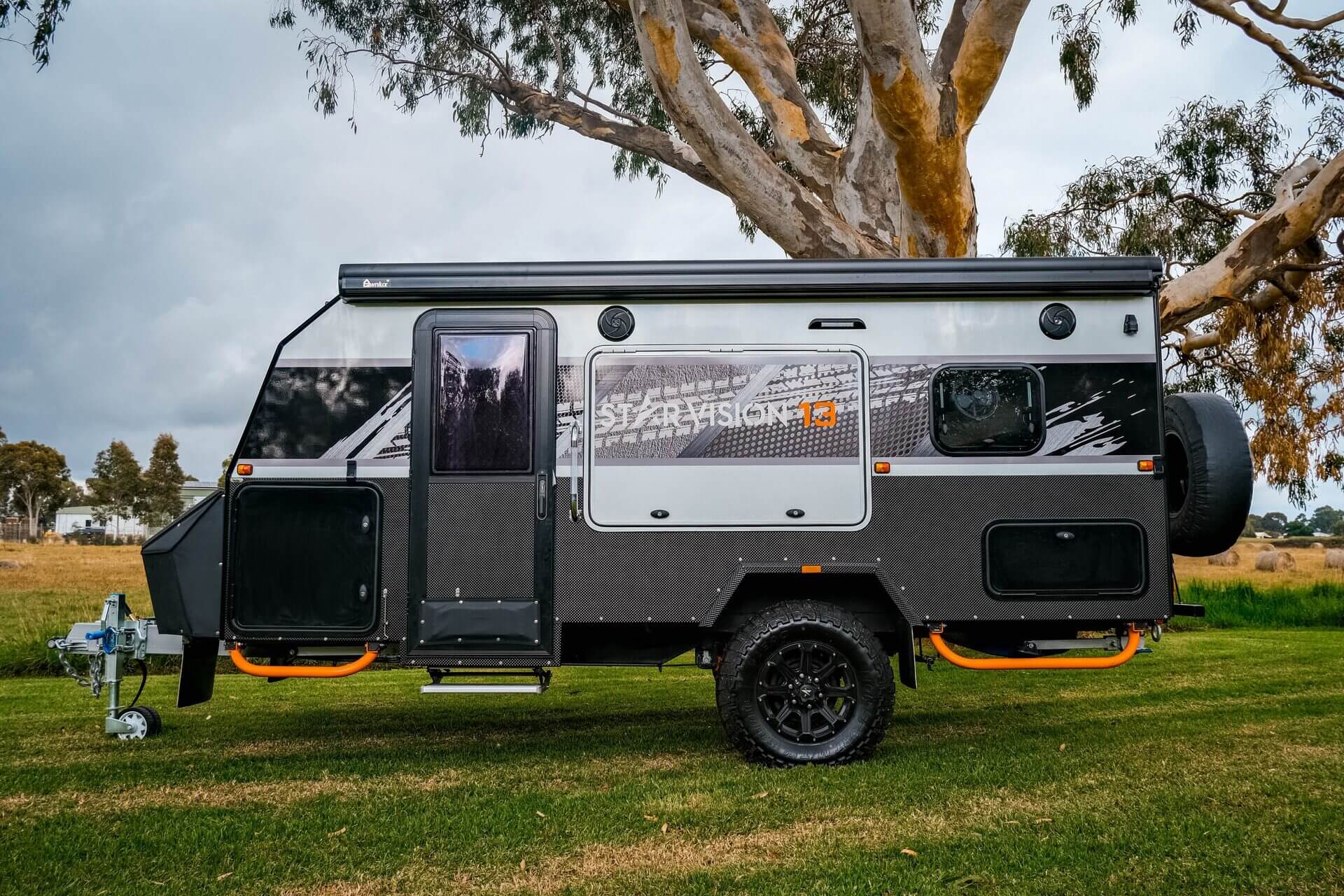

Side View

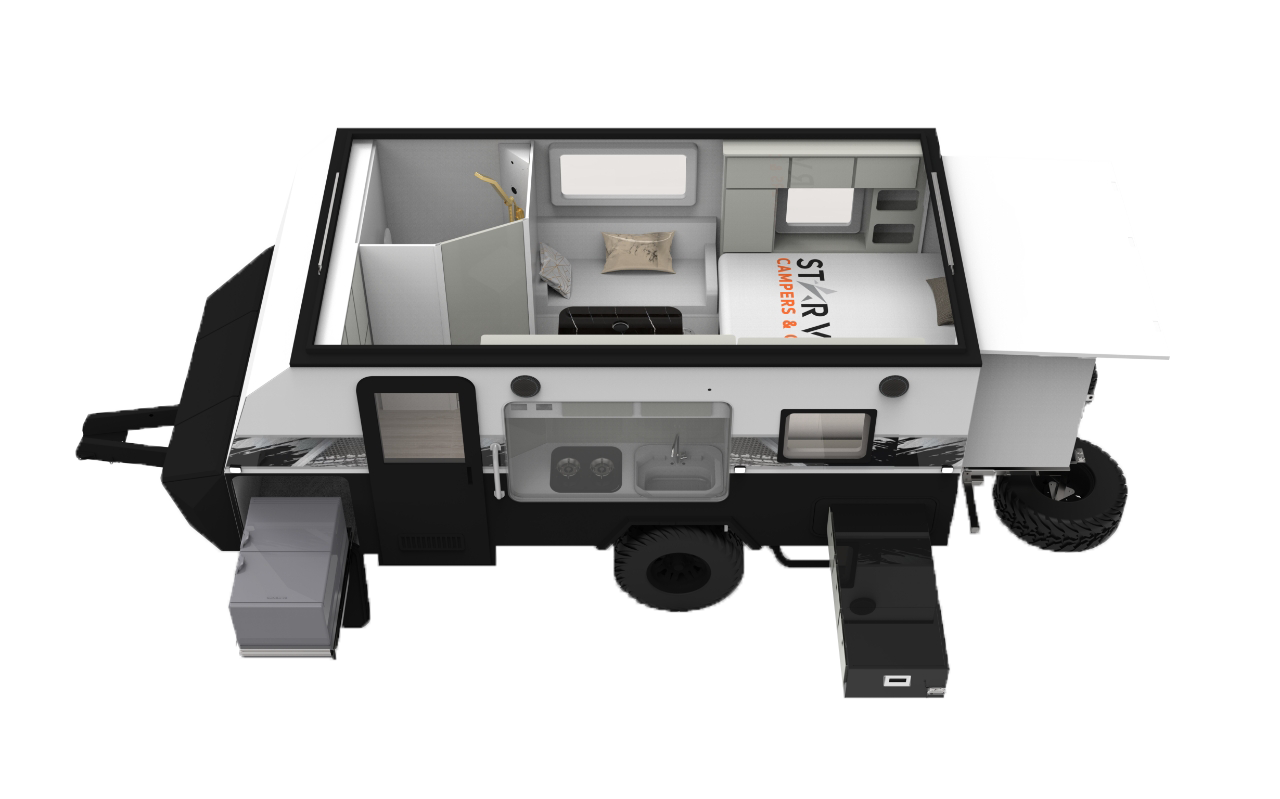

![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/WechatIMG426_480x480.jpg?v=1715732799)
Top View
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/WechatIMG417_480x480.jpg?v=1715733230)

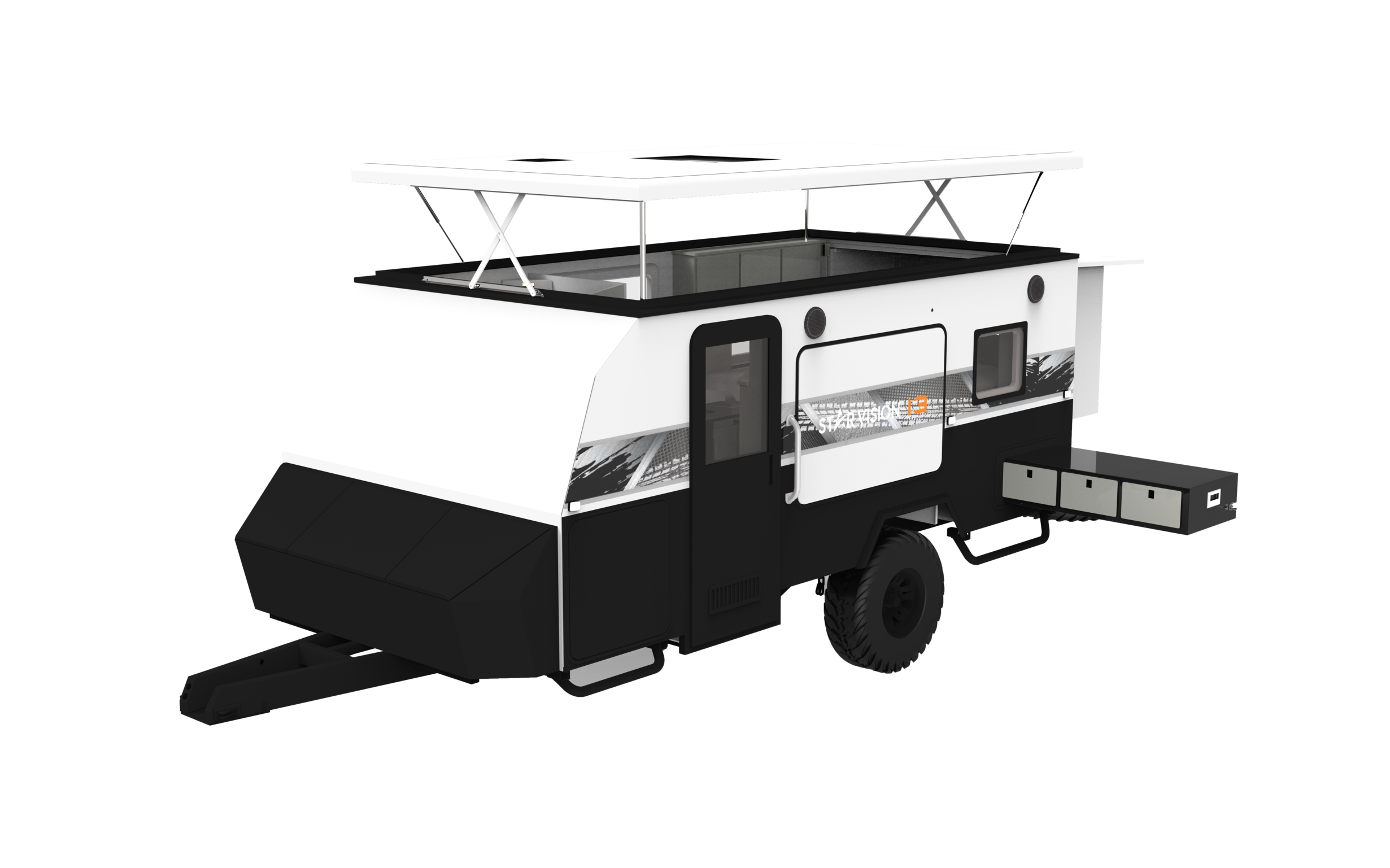

Outside View
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/WechatIMG427_480x480.jpg?v=1715733174)
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/WechatIMG426_480x480.jpg?v=1715732799)
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/WechatIMG417_480x480.jpg?v=1715733230)
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/WechatIMG427_480x480.jpg?v=1715733174)
Additional Details
DETAILS
|
|
SPECIFICATION
Trailer
|
Description
|
Travel Size:
|
5900 L x 2200 W x 2350 H mm
|
Draw-bar:
|
Coupling to body: 880 mm
|
Chassis:
|
Extra Heavy Duty off-road frame
|
Ball Weight:
|
Approx 210 KG
|
TARE Weight:
|
Approx 2120 KG
|
ATM:
|
2700KG
|
Toolbox Size: | 2050 L x 450 W x 620 tapered to 420 H mm |
Fridge Slide Size: | 855 L x 500 W x 595 H mm |
Additional Slide Size: | 855 L x 500 W x 200 H mm |
Suspension:
|
Coil spring, twin shock absorbers, independent trailing arm
|
Wheels and Tyres:
|
2 x Wheels, 2 x Brand New Spare 16” (265/75R16)
|
Brakes:
|
12-inch Electric Brakes and Hand Brake
|
Coupling:
|
Cruise master DO35 3.5T All-Terrain coupling with double safety chains
|
Finish:
|
Hot-Dip Galvanized steel frame
|
Jockey Wheel:
|
ARK XO 750 Series heavy duty dual jockey wheel
|
Water tank: | 120 + 80 Liter freshwater tanks |
Grey Tank: | 80 Liter grey water tank |
Gas Bottle holder: | 2 x 9kg Gas bottle holders |
Solar Panel: | 400W Roof mounted solar panel |
Stabilizer legs: | 4 x quick lock-up and wind down drop-down stabilizer bars |
Awning | Description |
Awning Type: | Manual |
Awning Section: | 3600 x 2500 mm |
Mattress: | 1830 L x 1500 W x 180 H mm |
Windows: | Midge mesh Mosquito Proof netting & block out blinds on all windows |
Mounting System: | Electric roof / Struts / Scissor arms |
Other features: | • Easy electric roof enables easy setup • High Strength Frame • Reverse Camera |
Optional Extras: | • Fully Enclosed Annex • Caravan TV • Chest Fridge • Diesel Heater • Power Upgrade • Pedders Upgrade • Lovells Upgrade |
BLUEPRINT
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/6864db599bdc9eba59e5717ff31f36a3.Blueprint-SV12_480x480.webp?v=1715130530)
|
|
Trailer
|
Description
|
Travel Size:
|
5900 L x 2200 W x 2350 H mm
|
Draw-bar:
|
Coupling to body: 880 mm
|
Chassis:
|
Extra Heavy Duty off-road frame
|
Ball Weight:
|
Approx 210 KG
|
TARE Weight:
|
Approx 2120 KG
|
ATM:
|
2700KG
|
Toolbox Size: | 2050 L x 450 W x 620 tapered to 420 H mm |
Fridge Slide Size: | 855 L x 500 W x 595 H mm |
Additional Slide Size: | 855 L x 500 W x 200 H mm |
Suspension:
|
Coil spring, twin shock absorbers, independent trailing arm
|
Wheels and Tyres:
|
2 x Wheels, 2 x Brand New Spare 16” (265/75R16)
|
Brakes:
|
12-inch Electric Brakes and Hand Brake
|
Coupling:
|
Cruise master DO35 3.5T All-Terrain coupling with double safety chains
|
Finish:
|
Hot-Dip Galvanized steel frame
|
Jockey Wheel:
|
ARK XO 750 Series heavy duty dual jockey wheel
|
Water tank: | 120 + 80 Liter freshwater tanks |
Grey Tank: | 80 Liter grey water tank |
Gas Bottle holder: | 2 x 9kg Gas bottle holders |
Solar Panel: | 400W Roof mounted solar panel |
Stabilizer legs: | 4 x quick lock-up and wind down drop-down stabilizer bars |
Awning | Description |
Awning Type: | Manual |
Awning Section: | 3600 x 2500 mm |
Mattress: | 1830 L x 1500 W x 180 H mm |
Windows: | Midge mesh Mosquito Proof netting & block out blinds on all windows |
Mounting System: | Electric roof / Struts / Scissor arms |
Other features: | • Easy electric roof enables easy setup • High Strength Frame • Reverse Camera |
Optional Extras: | • Fully Enclosed Annex • Caravan TV • Chest Fridge • Diesel Heater • Power Upgrade • Pedders Upgrade • Lovells Upgrade |
![](https://cdn.shopify.com/s/files/1/0878/4665/0175/files/6864db599bdc9eba59e5717ff31f36a3.Blueprint-SV12_480x480.webp?v=1715130530)
*Disclaimer: Information in this brochure may change without notice. While we strive for accuracy, Star Vision reserves the right to modify product specifications for ongoing improvements.
Please consult with a Star Vision representative to confirm current specifications before purchase. Star Vision is not liable for reliance on this information. All rights reserved.
